1
Grasshopper M161R Deck Part # 645171
2
Grasshopper Sheave Part # 415892
3
Grasshopper Sheave Part # 831538
4
Grasshopper Square Key Part # 281580
5
Grasshopper Spacer Part # 282615
6
Grasshopper Washer Part # 257106
7
Grasshopper Cupped Washer Part # 257041
8
Grasshopper Hex Bolt Part # 243331
9
Grasshopper Whiz Nut Part # 253035
10
Grasshopper Whiz Hex Flange Bolt Part # 253192
11
Grasshopper Pin Part # 644512
12
Grasshopper Center 2-Piece Roller Assy Part # 603725
13
Grasshopper Sheave Part # 831432
14
Grasshopper Whiz Nut Part # 253043
15
Grasshopper Hex Bolt Part # 243355
16
Grasshopper Whiz Hex Bolt Part # 253175
17
Grasshopper Idler Part # 393250
18
Grasshopper Flange Spiral Lock Nut Part # 253067
19
Grasshopper Washer Part # 883804
20
Grasshopper Washer Part # 257059
21
Grasshopper Bolt Part # 243590
22
Grasshopper Anti-Scalp Roller Right Mount Part # 645581
23
Grasshopper Anti-Scalp Roller Left Mount Part # 645589
24
Grasshopper Shroud Part # 645570
25
Grasshopper Anti-Scalp Center Hub Wheel Part # 484230
26
Grasshopper Bearing Part # 942137
27
Grasshopper Carriage Bolt Part # 247310
28
Grasshopper Carriage Bolt Part # 247135
29
Grasshopper Rear Shroud M161R Extension Part # 855004
30
Grasshopper Bolt Part # 243365
31
Grasshopper M161 & 72R Idler Arm Part # 824466
32
Grasshopper Oilite Bearing Part # 121756
33
Grasshopper Pedestal Bearing Part # 121650
34
Grasshopper Washer Part # 257040
35
Grasshopper Shield Discharge Deflector Part # 722885
36
Grasshopper Washer Part # 257062
37
Grasshopper Hex Bolt Part # 243575
38
Grasshopper Stabilizer Cap Part # 423670
39
Grasshopper Extension Spring Part # 283848
40
Grasshopper Nylon Bearing Part # 422520
41
Grasshopper J-Bolt Part # 730391
42
Grasshopper Nut Part # 254450
43

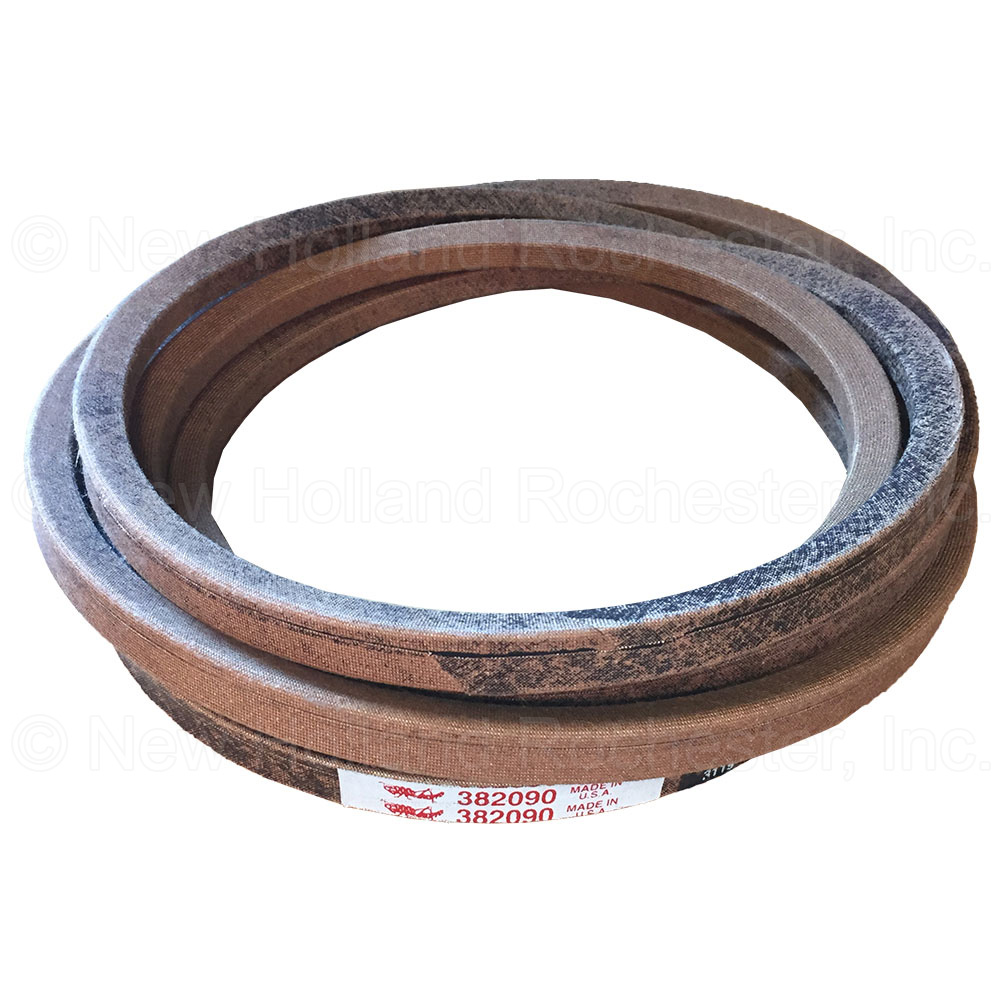

Grasshopper Belt Part # 382090
44
Grasshopper 5-Link Chain Part # 820331
45
Grasshopper Grade 8 Hex Bolt Part # 243458
46
Grasshopper Whiz Nut Part # 253058
47
Grasshopper Spring Nut Part # 254431
48
Grasshopper Whiz Truss Bolt Part # 253177
49
Grasshopper 21" Medium-Lift Mower Blade Part # 320242
50
Grasshopper 18" Hi-Low Mulch Mower Blade Part # 320240
51
Grasshopper Radius Arm Part # 604673
52
Grasshopper Rod End Part # 265665
53
Grasshopper Nut Part # 254493
54
Grasshopper Hex Bolt Part # 243810
55
Grasshopper Lock Nut Part # 253970
56
Grasshopper Belt Shield Part # 722451
57
Grasshopper Belt Shield Part # 722452
58
Grasshopper Discharge Shield Part # 645759
59
Grasshopper Sides Shield Flap Part # 424225
60
Grasshopper Whiz Truss Bolt Part # 253176
61
Grasshopper Whiz Nut Part # 253025
62
Grasshopper Shield Holder Part # 766015
63
Grasshopper Belt Part # 382080
64
Grasshopper Hair Pin Part # 260523
65
Grasshopper M161R Deck Flap Part # 424219
66
Grasshopper M161R Strap Flap Part # 782348
67
Grasshopper Deflector Part # 766081
68
Grasshopper Flap Extension Part # 766084
