1 |
|
Grasshopper Hopper Top Part # 643110
|
|
2 |
|
Grasshopper Vac Hose Inlet Adapter Part # 821005
|
|
3 |
|
Grasshopper Removable Screen Panel Part # 721390
|
|
4 |
|
Grasshopper Bottom Panel Part # 721447
|
|
5 |
|
Grasshopper Upper Back Panel Part # 722527
|
|
6 |
|
Grasshopper Side Panel Part # 721741
|
|
7 |
|
Grasshopper Side Panel Part # 721742
|
|
8 |
|
Grasshopper Rear Panel Part # 754153
|
|
9 |
|
Grasshopper Front Panel Part # 721412
|
|
10 |
|
Grasshopper Mount Channel Part # 729567
|
|
11 |
|
Grasshopper Door Handle Mount Part # 644568
|
|
12 |
|
Grasshopper Pivot Bearing Part # 822305
|
|
13 |
|
Grasshopper Hex Bolt Part # 243016
|
|
14 |
|
Grasshopper LA Hopper Handle Part # 734075
|
|
15 |
|
Grasshopper New Grip Handle Part # 422175
|
|
16 |
|
Grasshopper Spring Eyelet Part # 774156
|
|
17 |
|
Grasshopper Extension Spring Part # 284012
|
|
18 |
|
Grasshopper Spring Eyelet Part # 774140
|
|
19 |
|
Grasshopper Hex Bolt Part # 243347
|
|
20 |
|
Grasshopper Spacer Part # 902328
|
|
21 |
|
Grasshopper Whiz Nut Part # 253043
|
|
22 |
|
Grasshopper Lock Nut Part # 253890
|
|
23 |
|
Grasshopper Whiz Flange Bolt Part # 253203
|
|
24 |
|
Grasshopper Hopper Lever Stop Part # 732592
|
|
25 |
|
Grasshopper Rubber Bumper Part # 424053
|
|
26 |
|
Grasshopper Carriage Bolt Part # 247130
|
|
27 |
|
Grasshopper Whiz Nut Part # 253035
|
|
28 |
|
Grasshopper Channel Gusset Part # 723376
|
|
29 |
|
Grasshopper Channel Gusset Part # 723377
|
|
30 |
|
Grasshopper Hinge Mount Part # 644317
|
|
31 |
|

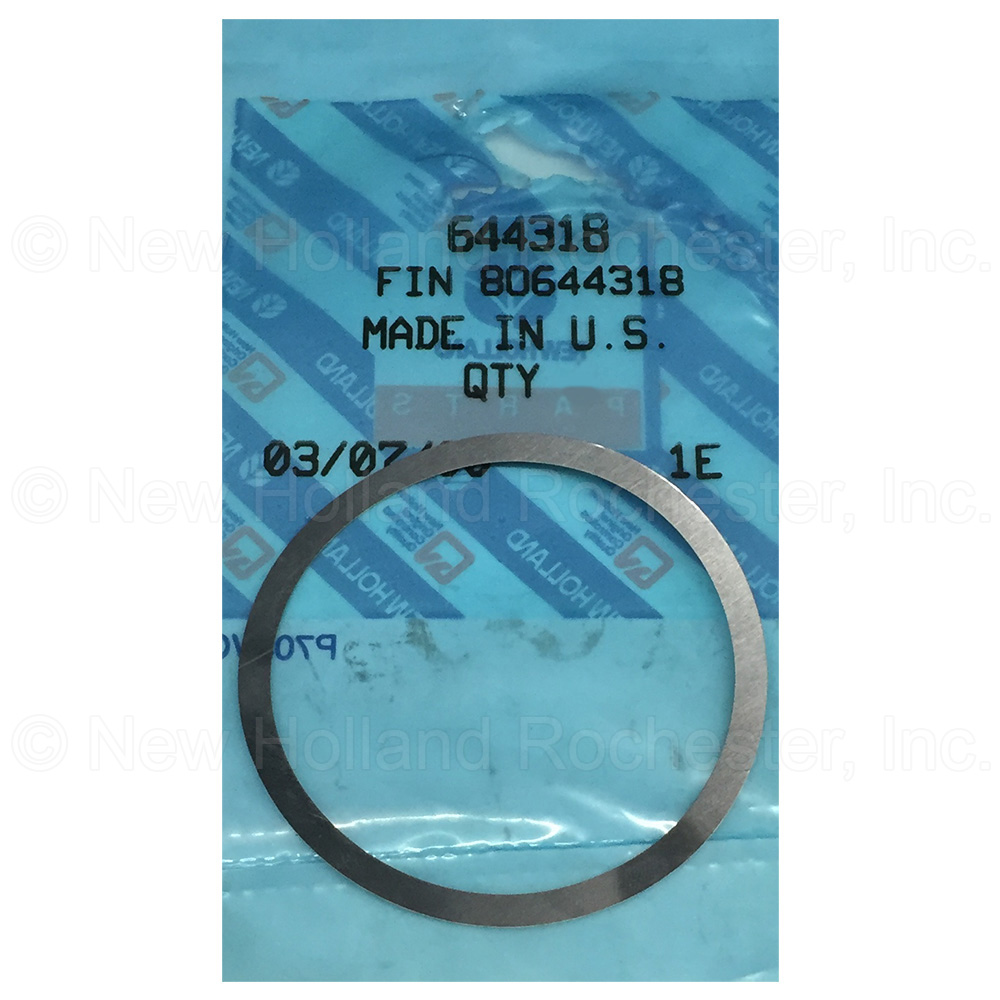

New Holland Shim Part # 644318
|
|
32 |
|
Grasshopper Nylon Bearing Part # 422615
|
|
33 |
|
Grasshopper Channel Part # 644196
|
|
34 |
|
Grasshopper Hitch Pin Part # 260400
|
|
35 |
|
Grasshopper Right-Hand Door Latch Part # 644155
|
|
36 |
|
Grasshopper Left-Hand Door Latch Part # 644156
|
|
37 |
|
Grasshopper Latch Linkage Part # 643453
|
|
38 |
|
Grasshopper Nut Part # 254441
|
|
39 |
|
New Holland Yoke Part # 265537
|
|
40 |
|
Grasshopper Clevis Pin Part # 261284
|
|
41 |
|
Grasshopper Cotter Pin Part # 260648
|
|
42 |
|
Grasshopper 16M1 Hopper Door Part # 644176
|
|
43 |
|
Grasshopper Reinforcement Part # 754194
|
|
44 |
|
Grasshopper Latch Bracket Part # 643122
|
|
45 |
|
Grasshopper Door Right Hinge Part # 643410
|
|
46 |
|
Grasshopper Door Left Hinge Part # 643411
|
|
47 |
|
Grasshopper Door Linkage Part # 644458
|
|
48 |
|
Grasshopper Nut Part # 254452
|
|
49 |
|
Grasshopper Yoke Clevis Part # 265545
|
|
50 |
|
Grasshopper Clevis Pin Part # 261346
|
|
51 |
|
Grasshopper Hex Bolt Part # 243335
|
|
52 |
|
Grasshopper Rubber Draw Latch Part # 281301
|
|
53 |
|
Grasshopper Inspection Window Part # 423502
|
|
54 |
|
Grasshopper Whiz Truss Bolt Part # 253176
|
|
55 |
|
Grasshopper Whiz Nut Part # 253025
|
|
56 |
|
Grasshopper Screw Part # 252040
|
|
57 |
|
Grasshopper 57? Flex Hose Part # 424408
|
|
58 |
|
Grasshopper Screen Guide Part # 723018
|
|
59 |
|
Grasshopper Screen Guide Part # 723019
|
|
60 |
|
Grasshopper Spring Assy Part # 604024
|
