Assembly: Mower Assembly-9052 (1991)

# Part
1 Grasshopper Pulley Part # 415861
$44.85 Add to cart
2 Grasshopper Hex Bolt Part # 243331
$0.40 Add to cart
3 Grasshopper Cupped Washer Part # 257041
$1.35 Add to cart
4 New Holland Screw Part # 120081
$15.65 Add to cart
5 Grasshopper Housing Part # 320526
$79.25 Add to cart
6 New Holland Lock Washer Part # 280734
$0.46 Add to cart
7 Grasshopper Spacer Part # 903640
$12.20 Add to cart

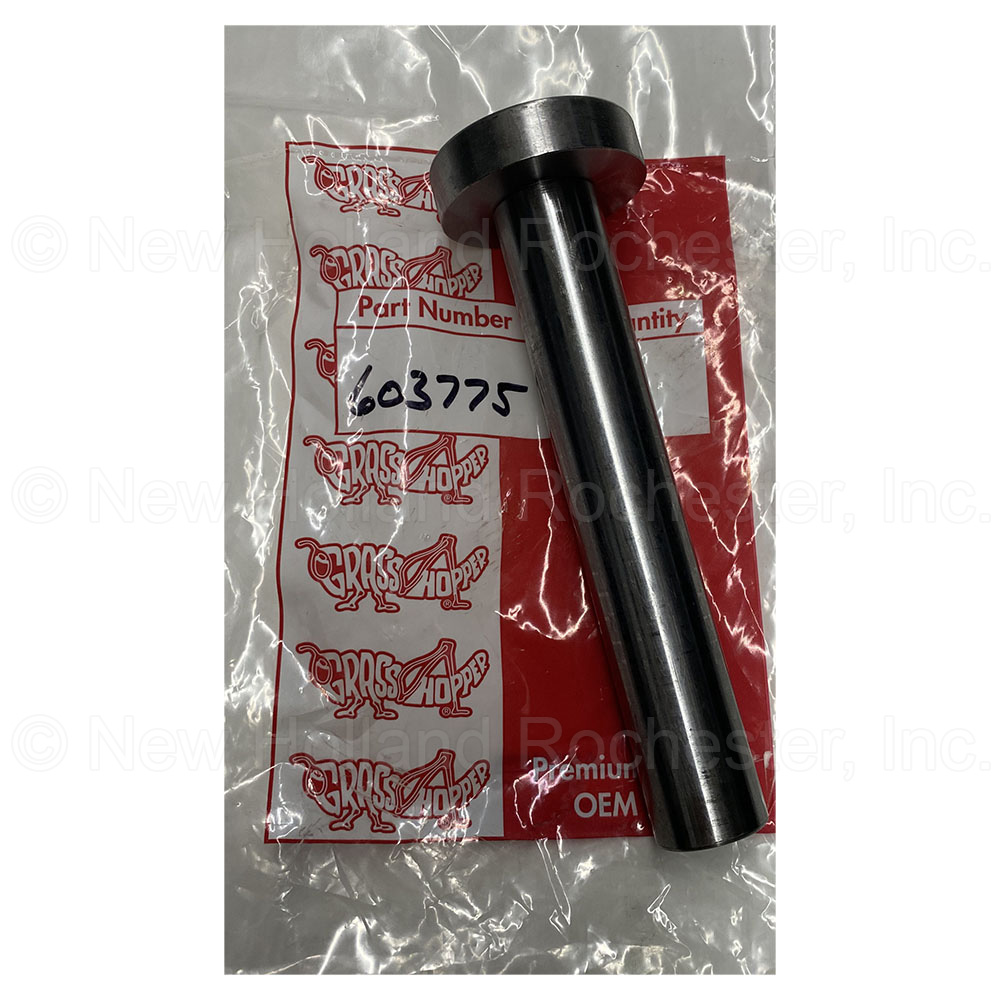

8 Grasshopper Blade Spindle Shaft Part # 603775
$51.25 Add to cart
9 Grasshopper Fiber Washer Part # 421200
$1.02 Add to cart
10 Grasshopper Washer Part # 257061
$2.18 Add to cart
11 Grasshopper 1/2" Lock Washer Part # 257432
$0.16 Add to cart
12 Grasshopper Hex Bolt Part # 243581
$1.25 Add to cart
13 Grasshopper Spindle Assy Part # 623785
$191.45 Add to cart
14 Grasshopper 18" Hi-Lift Notch Mower Blade Part # 320239
$19.95 Add to cart
15 Grasshopper Shield Part # 722284
$51.80 Add to cart
16 SHIELD ASSY - 9052 #603781
$103.80 Add to cart
17 Grasshopper Rubber Draw Latch Part # 281301
$8.95 Add to cart
18 Grasshopper Belt Part # 382037
$39.30 Add to cart
19 Grasshopper Pedestal Bearing Part # 121650
$5.80 Add to cart
20 Grasshopper Idler Part # 393225
$13.65 Add to cart
21 Grasshopper Idler Arm w/ Bearing Part # 824502
$39.20 Add to cart
22 Grasshopper Spacer Part # 902317
$7.25 Add to cart
23 Grasshopper Spring Extension Part # 283820
$2.80 Add to cart
24 Grasshopper J-Bolt Part # 730391
$1.93 Add to cart
25 SHEAVE #831520
$77.10 Add to cart
26 Grasshopper Sheave Part # 831435
$86.70 Add to cart
28 Grasshopper Discharge Part # 643747
$177.55 Add to cart
29 Grasshopper Mount Part # 643632
$11.40 Add to cart
30 Grasshopper Clevis Shaft Part # 643235
$23.75 Add to cart
31 Grasshopper Upper Right Lift Channel Part # 643500
$82.75 Add to cart
32 Grasshopper Upper Left Lift Channel Part # 643501
$82.75 Add to cart
33 Grasshopper Stabilizer w/ Bumper Part # 822312
$35.04 Add to cart
34 Grasshopper Right Fork Mount w/ Bearing Part # 603351
$80.10 Add to cart

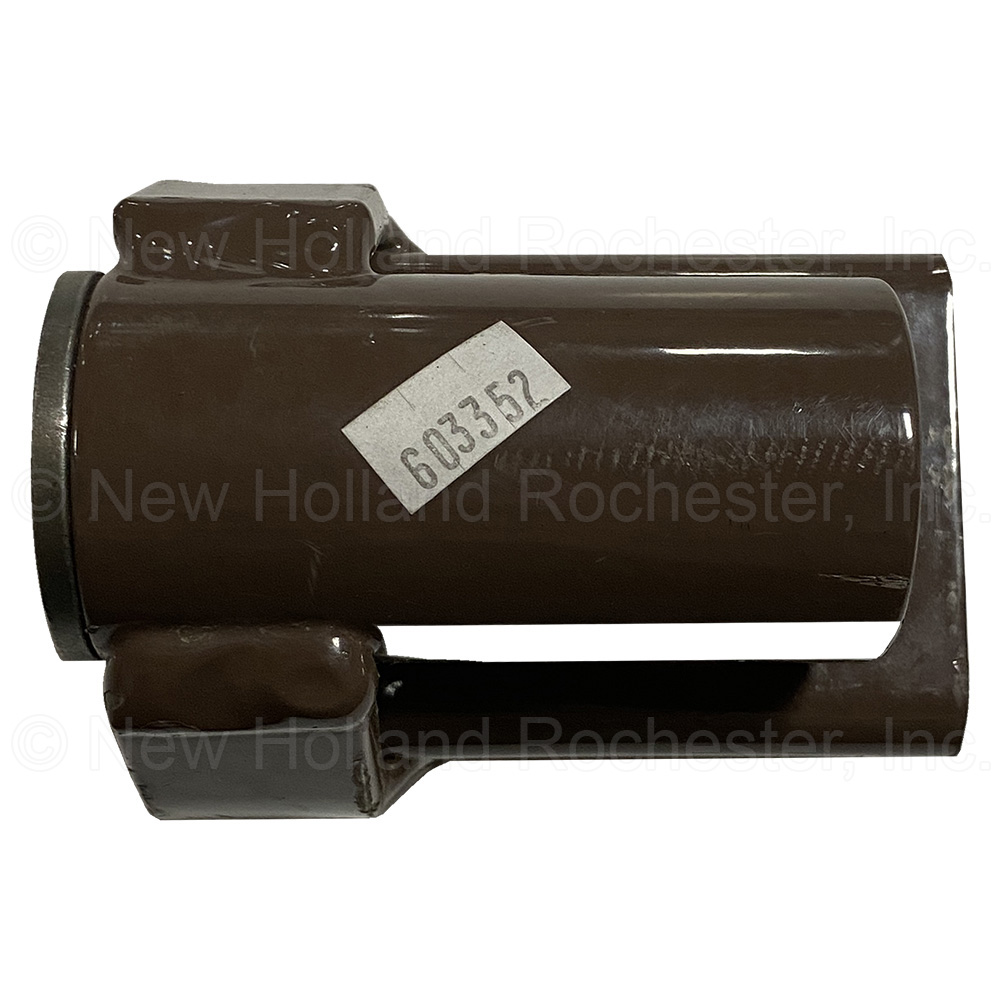

35 Grasshopper Left Fork Mount w/ Bearing Part # 603352
$80.10 Add to cart
36 FITTING - GREASE (ZERK) #280777
$1.30 Add to cart
37 Grasshopper Flanged Bushing Part # 833260
$12.55 Add to cart
38 Grasshopper Fork Part # 604350
$61.45 Add to cart
39 Grasshopper Wheel & Tire Assy Part # 603971
$114.30 Add to cart
40 Grasshopper Spacer Part # 902473
$7.80 Add to cart
41 Grasshopper Ball Bearing Part # 120050
$13.60 Add to cart
42 Grasshopper Spacer Part # 902415
$3.80 Add to cart
43 Grasshopper Carriage Part # 247715
$2.89 Add to cart
44 Grasshopper Lock Nut Part # 253970
$0.81 Add to cart
45 Grasshopper Linkage Arm Part # 603564
$56.60 Add to cart

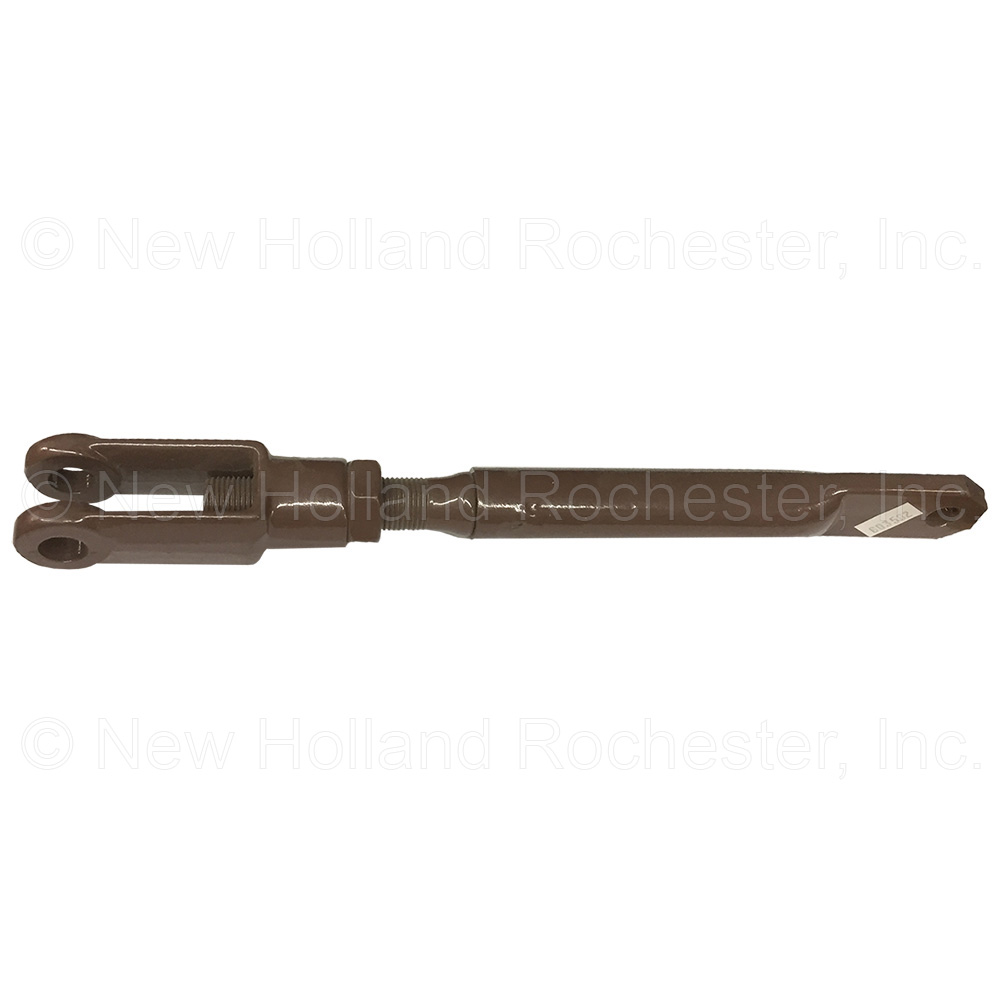

46 Grasshopper Arm Part # 603562
$72.50 Add to cart

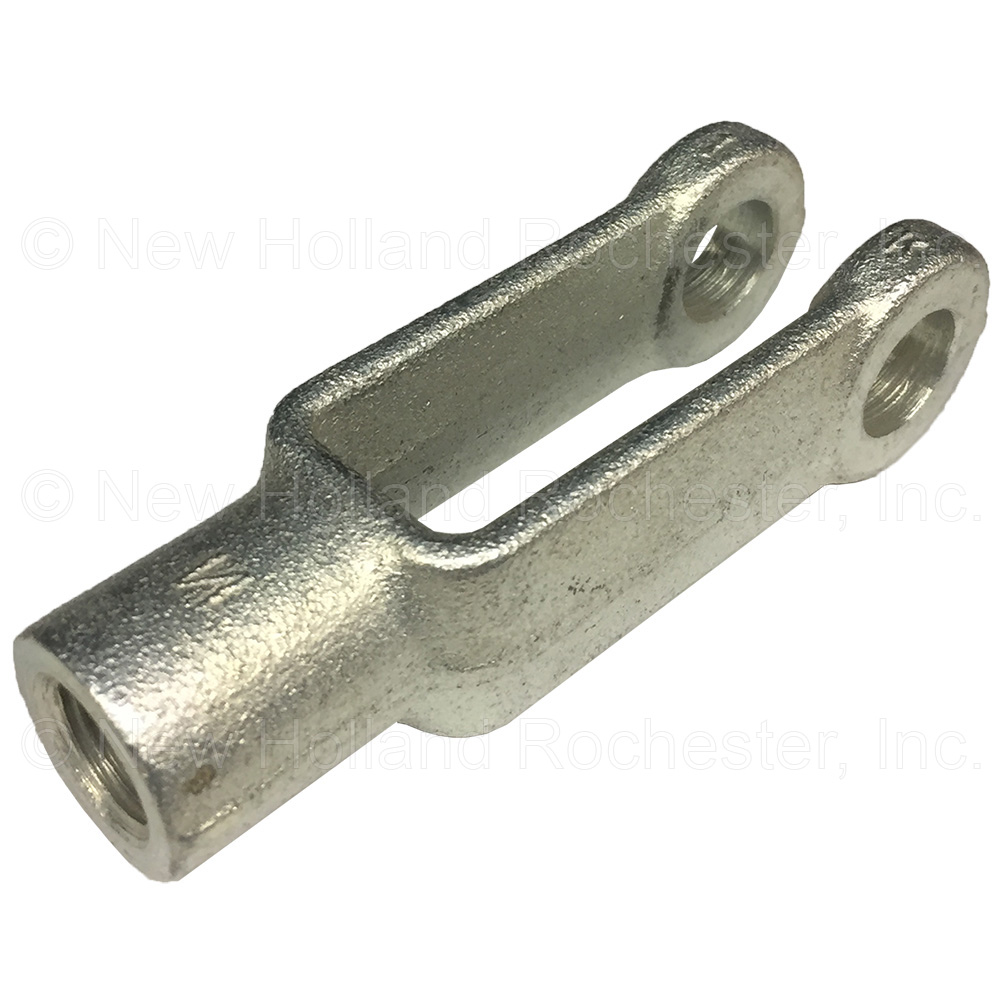

47 Grasshopper Yoke Clevis Part # 265554
$15.00 Add to cart

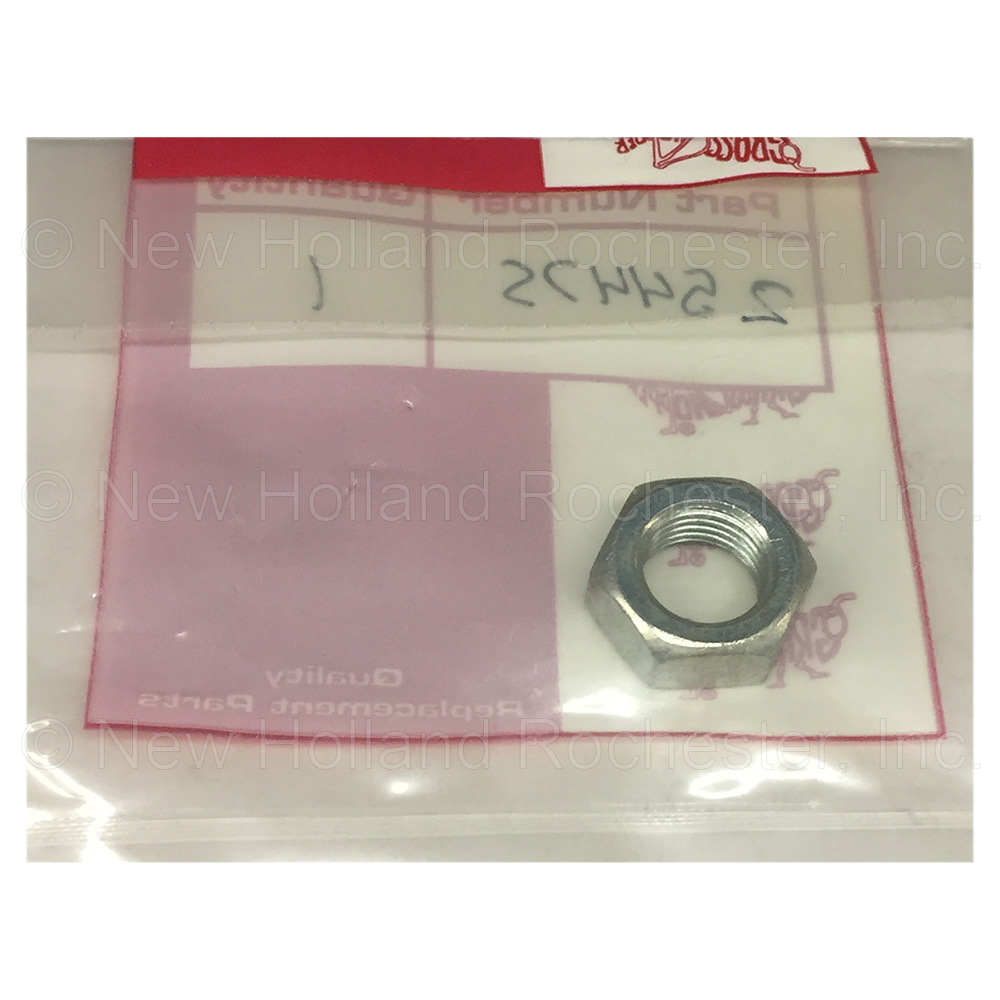

48 Grasshopper Nut Part # 254475
$0.70 Add to cart
49 Grasshopper Gearbox Part # 390024
$284.15 Add to cart
50 Grasshopper Sheave Part # 416116
$78.35 Add to cart
51 LIFT ARM - 9052 #643498
$0.00 Add to cart
52 Grasshopper Attaching Pin Part # 643625
$22.95 Add to cart
53 Grasshopper Safety Pin Part # 261848
$1.30 Add to cart
54 Grasshopper Deck Lift Lever Part # 643529
$137.80 Add to cart
55 Grasshopper Handle Grip Part # 422155
$4.15 Add to cart
56 Grasshopper Handle Grip Part # 422158
$1.35 Add to cart
57 Grasshopper Half Shaft Part # 398525
$153.25 Add to cart
58 Grasshopper Yoke Part # 401010
$29.87 Add to cart
59 Grasshopper Cross & Bearing Part # 121010
$31.15 Add to cart
60 Grasshopper Yoke & Shaft Part # 402605
$59.80 Add to cart
61 Grasshopper Hex Bolt Part # 243609
$2.25 Add to cart
62 Grasshopper Bolt Part # 243614
$2.82 Add to cart
63 Grasshopper Retainer External Part # 263500
$0.30 Add to cart
64 Grasshopper Hex Bolt Part # 243375
$1.10 Add to cart
65 Grasshopper Hex Bolt Part # 243580
$1.25 Add to cart
66 Grasshopper Nut Part # 253930
$0.45 Add to cart
67 Grasshopper Clevis Pin Part # 261346
$1.20 Add to cart
68 Grasshopper Clevis Pin Part # 261426
$1.30 Add to cart
69 Grasshopper Washer Part # 257040
$0.21 Add to cart
70 Grasshopper Cotter Pin Part # 260652
$0.10 Add to cart
71 Grasshopper Spacer Part # 282630
$1.90 Add to cart
72 Grasshopper Washer Part # 774020
$1.11 Add to cart
73 New Holland Clamp Part # 257412
$0.10 Add to cart
74 Grasshopper Hitch Pin Part # 260400
$3.00 Add to cart
75 Grasshopper Woodruff Key Part # 281833
$0.50 Add to cart
76 Grasshopper Woodruff Key Part # 281828
$0.35 Add to cart
77 Grasshopper Spring Nut Part # 254431
$0.78 Add to cart
78 Grasshopper Whiz Hex Bolt Part # 253175
$0.34 Add to cart
79 Grasshopper Hex Bolt Part # 243195
$0.22 Add to cart
80 Grasshopper Lock Washer Part # 257402
$0.07 Add to cart
81 Grasshopper Square Key Part # 281586
$0.95 Add to cart
82 Grasshopper Rubber Bumper Part # 424052
$3.40 Add to cart
83 Grasshopper Spacer Part # 282630
$1.90 Add to cart
84 CAP - VINYL 1" ID #422097
$1.50 Add to cart
85 Grasshopper Nut Part # 254450
$0.16 Add to cart
86 Grasshopper Hex Bolt Part # 243385
$0.93 Add to cart
87 Grasshopper Hex Bolt Part # 243565
$1.00 Add to cart
88 Grasshopper Washer Part # 257062
$0.16 Add to cart
89 Grasshopper Bolt Part # 243365
$0.75 Add to cart
90 DECAL SET - MOWER SAFETY #603280
$29.65 Add to cart
