Assembly: Tractor Assembly (2003)

# Part
1 FRAME - LOWER - AC FRNT PRT G2 #644234
$3,642.00 Add to cart
2 FRAME - UPPER G2 #643871
$1,153.50 Add to cart
3 Grasshopper Step Bushing Part # 257037
$1.45 Add to cart
4 HEX BOLT #243220
$0.40 Add to cart
5 Grasshopper Washer Part # 774020
$1.11 Add to cart
6 Grasshopper Insert-Nylon Nut Part # 253450
$0.17 Add to cart
7 Grasshopper Compression Spring Part # 283516
$4.85 Add to cart
8 Grasshopper Whiz Flange Bolt Part # 253203
$1.28 Add to cart
9 Grasshopper Cap Seat Spring Part # 422127
$2.60 Add to cart
10 THROTTLE ASSY #603821
$51.50 Add to cart
11 Woods Starter Relay Part # 422150
$2.00 Add to cart
12 Grasshopper Spacer Part # 902280
$3.55 Add to cart
13 Grasshopper Toolbox Part # 422040
$14.43 Add to cart
14 Grasshopper Fender w/ Decal Part # 693210
$311.45 Add to cart
15 FENDER W/SAFETY DECAL 7/900 LT #693211
$320.10 Add to cart
16 Grasshopper Fender Edge Trim Part # 822635
$4.10 Add to cart
17 COVER PANEL - FENDER RT #722062
$5.50 Add to cart
18 Grasshopper Right Bar Tread Wheel & Tire Assy Part # 483942
$300.25 Add to cart
19 Grasshopper Left Bar Tread Wheel & Tire Assy Part # 483943
$300.25 Add to cart
20 ENGINE - 25HP KOHLER #100174
$0.00 Add to cart
21 Grasshopper / Kohler Oil Filter Part # 100802
$45.84 Add to cart
22 Grasshopper Outer Air Filter Part # 100936
$26.92 Add to cart
23 Grasshopper Spring Nut Part # 254431
$0.78 Add to cart
24 Grasshopper Muffler Kohler Part # 101217
$393.80 Add to cart
25 Grasshopper / Kohler Fuel Filter Part # 101001
$14.65 Add to cart
26 Grasshopper Hinge Part # 422065
$0.45 Add to cart
27 SHIELD - FLYWHEEL 725A #722147
$16.25 Add to cart
28 MOUNT -SHIELD 725A COUPLER RT #722423
$34.85 Add to cart
29 MOUNT -SHIELD 725A COUPLER LT #722424
$34.85 Add to cart
30 CONSOLE W/DECAL 325A/725A #693106
$178.25 Add to cart
31 Grasshopper Fill Panel Part # 721152
$27.75 Add to cart

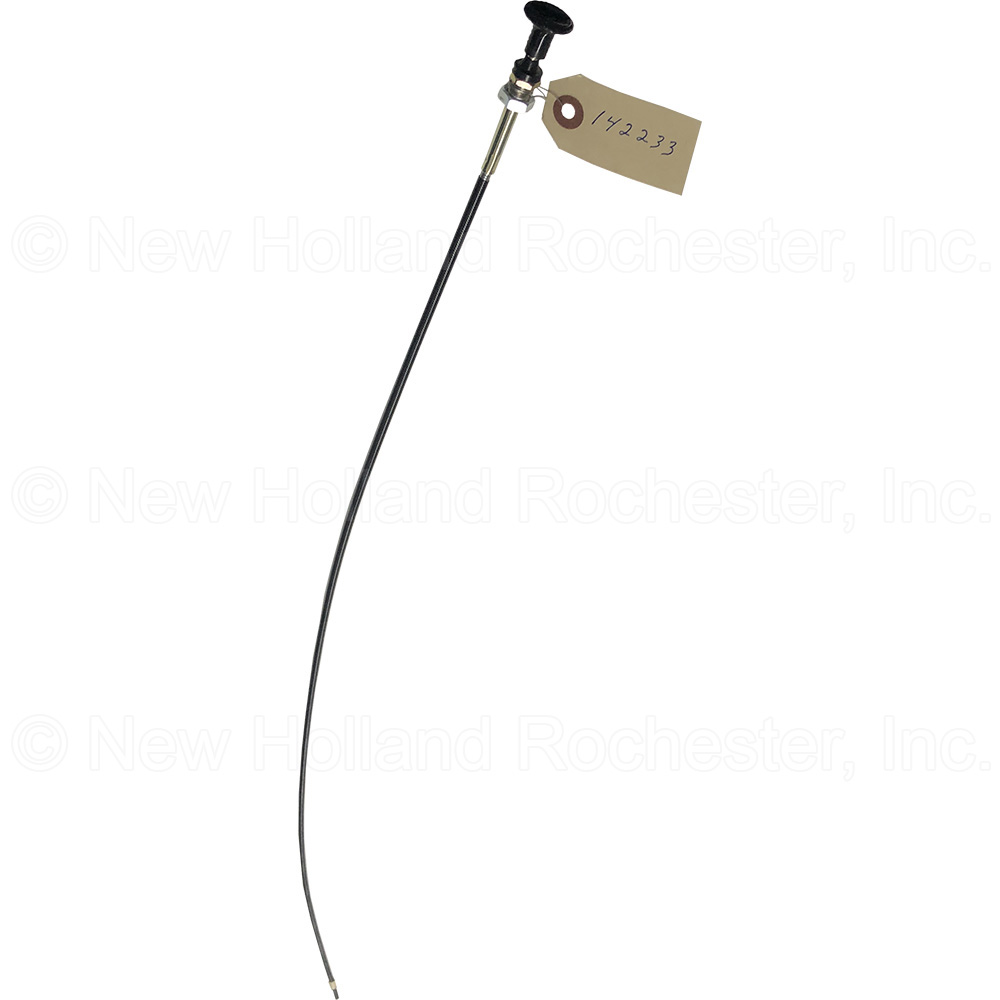

32 Grasshopper Mechanical Choke Part # 142233
$22.70 Add to cart
33 Grasshopper Fuel Tank Assy w/ Draw Tube Part # 603813
$44.07 Add to cart
34 Grasshopper Mount Bracket Part # 643144
$32.85 Add to cart
35 Grasshopper Gas Cap Part # 141125
$37.45 Add to cart
36 Grasshopper Fuel Draw Tube Part # 101819
$4.50 Add to cart
37 New Holland Screw Part # 280260
$1.75 Add to cart
38 HOSE - FUEL #821711
$8.05 Add to cart
39 SHIELD - HEAT FUEL TANK RT #721123
$0.00 Add to cart
40 COUNTERWEIGHT - 34 LB #323933
$193.40 Add to cart
41 WEIGHT COVER - 34 LB #729514
$40.70 Add to cart
42 CARRIAGE BOLT #247325
$1.10 Add to cart
43 Grasshopper Quick-Disconnect Deck Right Mount Part # 643092
$33.90 Add to cart
44 Grasshopper Quick-Disconnect Deck Left Mount Part # 643093
$33.90 Add to cart
45 Grasshopper Bolt Part # 247280
$1.41 Add to cart
46 Grasshopper Bushing Part # 282575
$3.20 Add to cart
47 Grasshopper Bushing Part # 282576
$2.80 Add to cart
48 Grasshopper Nut Part # 253460
$0.26 Add to cart
49 Grasshopper Foot Platform Part # 604346
$236.15 Add to cart
50 Grasshopper Foot Rest Tread Part # 420905
$1.90 Add to cart
51 Grasshopper Nylon Bearing Part # 422615
$0.85 Add to cart
52 PIVOT ROD - FOOT PLATFORM 700 #780673
$35.85 Add to cart
53 NUT - INSERT - NYLON #253470
$0.30 Add to cart
54 Grasshopper Rubber Bumper Part # 424052
$3.40 Add to cart
55 EXTENSION - 700 FOOT PLATFORM #603301
$0.00 Add to cart
56 Grasshopper Foot Rest Extension Tread Part # 420904
$1.50 Add to cart
57 Grasshopper Carriage Bolt Part # 247130
$0.32 Add to cart
58 Grasshopper Whiz Hex Flange Bolt Part # 253192
$0.42 Add to cart
59 Grasshopper Whiz Nut Part # 253035
$0.13 Add to cart
60 SPRING - COMPRESSION #283312
$0.75 Add to cart
61 Grasshopper Isolator Block Part # 424100
$3.25 Add to cart
62 HEX BOLT #243026
$0.20 Add to cart
63 Grasshopper Shield Part # 721383
$57.45 Add to cart
64 Grasshopper Battery Box Part # 644099
$57.10 Add to cart
65 Grasshopper Battery Cover Part # 644162
$49.80 Add to cart
66 Grasshopper Battery Tray Pad Part # 427273
$6.60 Add to cart
67 Grasshopper Battery Clamp Part # 729001
$5.10 Add to cart
68 Grasshopper Washer Part # 257020
$0.10 Add to cart
69 Grasshopper Whiz Hex Bolt Part # 253175
$0.34 Add to cart
70 Grasshopper Whiz Nut Part # 253025
$0.15 Add to cart
71 Grasshopper Whiz Hex Bolt Part # 253173
$0.32 Add to cart
72 GUSSET - ROPS RT #726131
$53.85 Add to cart
73 GUSSET - ROPS LT #726132
$53.85 Add to cart
74 Grasshopper Bumper Part # 424015
$1.00 Add to cart
75 REINFORCEMENT - BRAKE PIN #729230
$14.40 Add to cart
76 DECAL SET-725A W/SIDE CONSOLE #604207
$80.85 Add to cart
