1
FRAME - LOWER 616T #643878
2
FRAME - UPPER 600T #643874
3
Grasshopper Engine Part # 100137
4
Grasshopper Oil Filter Briggs and Stratton Part # 100803
5
Grasshopper Air Filter Briggs and Stratton Part # 100920
6
MUFFLER -SILENT #101207
7
SHIELD -HEAT 616T #643922
8
COVER - MUFFLER #722991
9

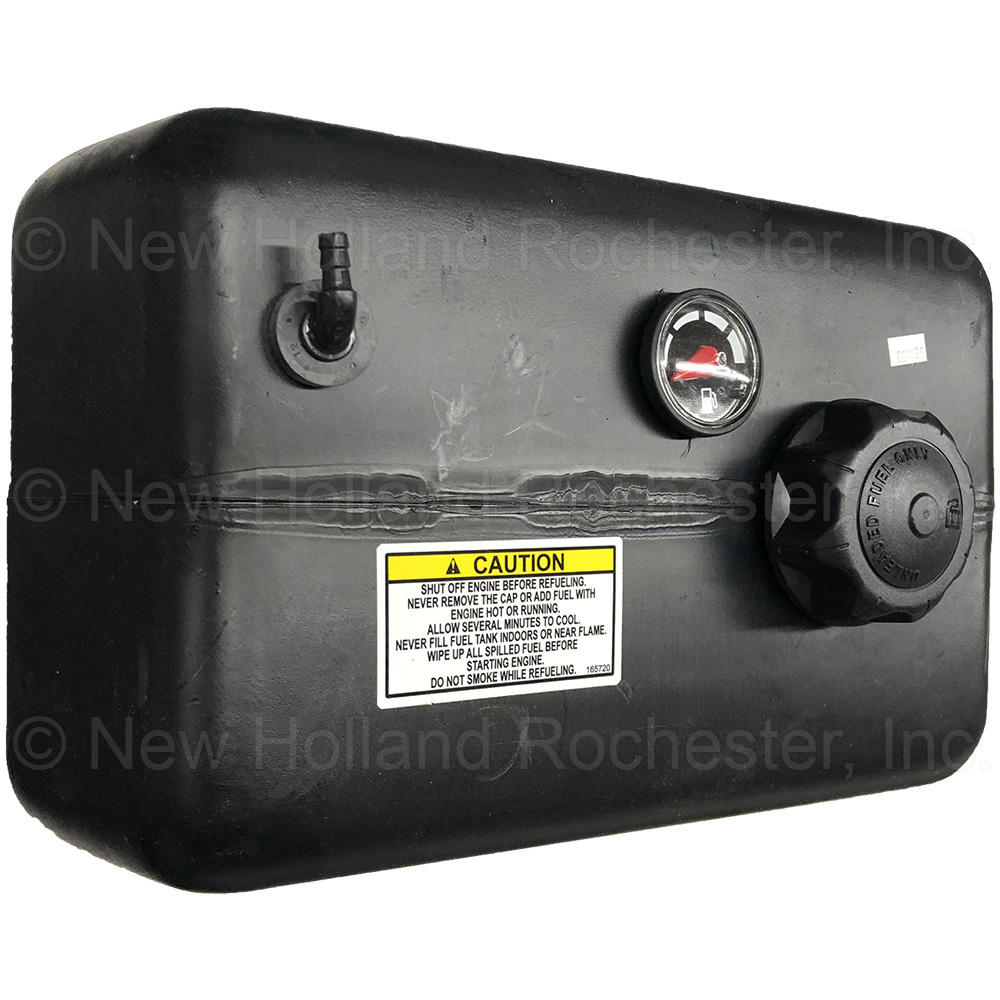

Grasshopper 4.3 Gal Gas 0.25" Barb Fuel Tank Assy Part # 604835
10
Grasshopper Bushing Part # 101875
11
Grasshopper Fuel Tube Part # 363925
12
Grasshopper Fuel Intake Gauge Part # 141142
13
Grasshopper Fuel Cap Part # 100210
14
Grasshopper Mount Bracket Part # 643144
15
New Holland Screw Part # 280260
16
Grasshopper In-Line Fuel Filter Briggs & Stratton Part # 366560
17
Grasshopper Hinge Part # 422065
18
COUNTERWEIGHT - 34 LB #323933
19
WEIGHT COVER - 34 LB #729514
20
CARRIAGE BOLT #247325
21
CONSOLE PANEL 200 W/ DECAL #693115
22
Grasshopper Choke Part # 142210
23
FENDER W/DECALS 620T RT #693198
24
Grasshopper Fender Part # 693199
25
Grasshopper Toolbox Part # 422040
26
Grasshopper Flood Worklamp Part # 182253
27
Grasshopper Snap Mount Worklamp Bezel Part # 182251
28
TRIM #822632
29
Grasshopper Turf Tire and Wheel Part # 483921
30
Grasshopper Lug Bolt Part # 248565
31
FOOT PLATFORM ASSY - ADJ 620T #604348
32
Grasshopper Foot Rest Tread Part # 420905
33
Grasshopper Nylon Bearing Part # 422615
34
Grasshopper Isolator Block Part # 424100
35
HEX BOLT #243026
36
Grasshopper Rubber Bumper Part # 424052
37
Grasshopper Whiz Nut Part # 253035
38
PIVOT ROD - FOOTREST 600 #780656
39
NUT - INSERT - NYLON #253470
40
SPRING - COMPRESSION #283312
41
EXTENSION - 600 FOOT PLATFORM #603300
42
Grasshopper Foot Rest Extension Tread Part # 420904
43
Grasshopper Whiz Hex Flange Bolt Part # 253192
44
Grasshopper Carriage Bolt Part # 247130
45
Grasshopper Throttle Assy Part # 603856
46
Woods Starter Relay Part # 422150
47
Grasshopper Bumper Part # 424015
48
Grasshopper Whiz Hex Bolt Part # 253175
49
Grasshopper Insert-Nylon Nut Part # 253440
50
Grasshopper Whiz Nut Part # 253025
51
Grasshopper Battery Box Part # 644099
52
Grasshopper Battery Cover Part # 644162
53
Grasshopper Battery Clamp Part # 729001
54
Grasshopper Battery Tray Pad Part # 427273
55
Grasshopper Whiz Hex Bolt Part # 253173
56
Grasshopper Whiz Truss Bolt Part # 253176
57
Grasshopper Whiz Flange Bolt Part # 253203
58
Grasshopper Whiz Nut Part # 253043
59
Grasshopper Spring Nut Part # 254431
60
DECK MOUNT - QD 600T RT #643894
61
Grasshopper Quick-Disconnect Deck Left Mount Part # 643895
62
Grasshopper Bushing Part # 282575
63
Grasshopper Bushing Part # 282576
64
Grasshopper Bolt Part # 247280
65
Grasshopper Nut Part # 253460
66
STRAP - CROSSMEMBER #732824
67
HOSE - FUEL #821770
68
SPACER - WHEEL 5 BOLT - 1/4" #776295
69
New Holland Bolt Part # 321246
70
EXHAUST CLAMP #724971
71
Grasshopper Whiz Hex Flange Bolt Part # 253191
72
Grasshopper Bolt Part # 270821
73
DECAL SET - 616T #604239
