1 |
|
Grasshopper Frame Part # 644230
|
|
2 |
|
Grasshopper Upper Frame Part # 643869
|
|
3 |
|
Grasshopper Step Bushing Part # 257037
|
|
4 |
|
Grasshopper Hex Bolt Part # 243220
|
|
5 |
|
Grasshopper Washer Part # 774020
|
|
6 |
|
Grasshopper Insert-Nylon Nut Part # 253450
|
|
7 |
|
Grasshopper Compression Spring Part # 283516
|
|
8 |
|
Grasshopper Whiz Flange Bolt Part # 253203
|
|
9 |
|
Grasshopper Cap Seat Spring Part # 422127
|
|
10 |
|
Grasshopper Throttle Assy Part # 603855
|
|
11 |
|
Woods Starter Relay Part # 422150
|
|
12 |
|
Grasshopper Spacer Part # 902280
|
|
13 |
|
Grasshopper Toolbox Part # 422040
|
|
14 |
|
Grasshopper 12V Voltage Regulator Part # 185530
|
|
15 |
|
Grasshopper Fender w/ Decal Part # 693210
|
|
16 |
|
Grasshopper 7/900 Left Fender w/ Safety Decal Part # 693211
|
|
17 |
|
Grasshopper Fender Edge Trim Part # 822635
|
|
18 |
|
Grasshopper Turf Tire and Wheel Part # 483921
|
|
19 |
|
Grasshopper Right Fender Cover Panel Part # 722062
|
|
20 |
|
Grasshopper Contour Battery Box Assy Part # 603105
|
|
21 |
|
Grasshopper Battery Box Lid Part # 603570
|
|
22 |
|
Grasshopper Rubber Draw Latch Part # 281301
|
|
23 |
|
Grasshopper Rubber Bumper Part # 424029
|
|
24 |
|
Grasshopper Bolt-On Battery Clamp Part # 723017
|
|
25 |
|
Grasshopper Bumper Part # 424015
|
|
26 |
|
Grasshopper Liquid-Cool Diesel Console w/ Decal Part # 693104
|
|
27 |
|
Grasshopper Fill Panel Part # 721152
|
|
28 |
|
Grasshopper Prefilter Fuel Filter Kubota Part # 101005
|
|
29 |
|
Grasshopper Fuel Line Hose Part # 821713
|
|
30 |
|
Grasshopper Hose Spring Clamp Part # 280261
|
|

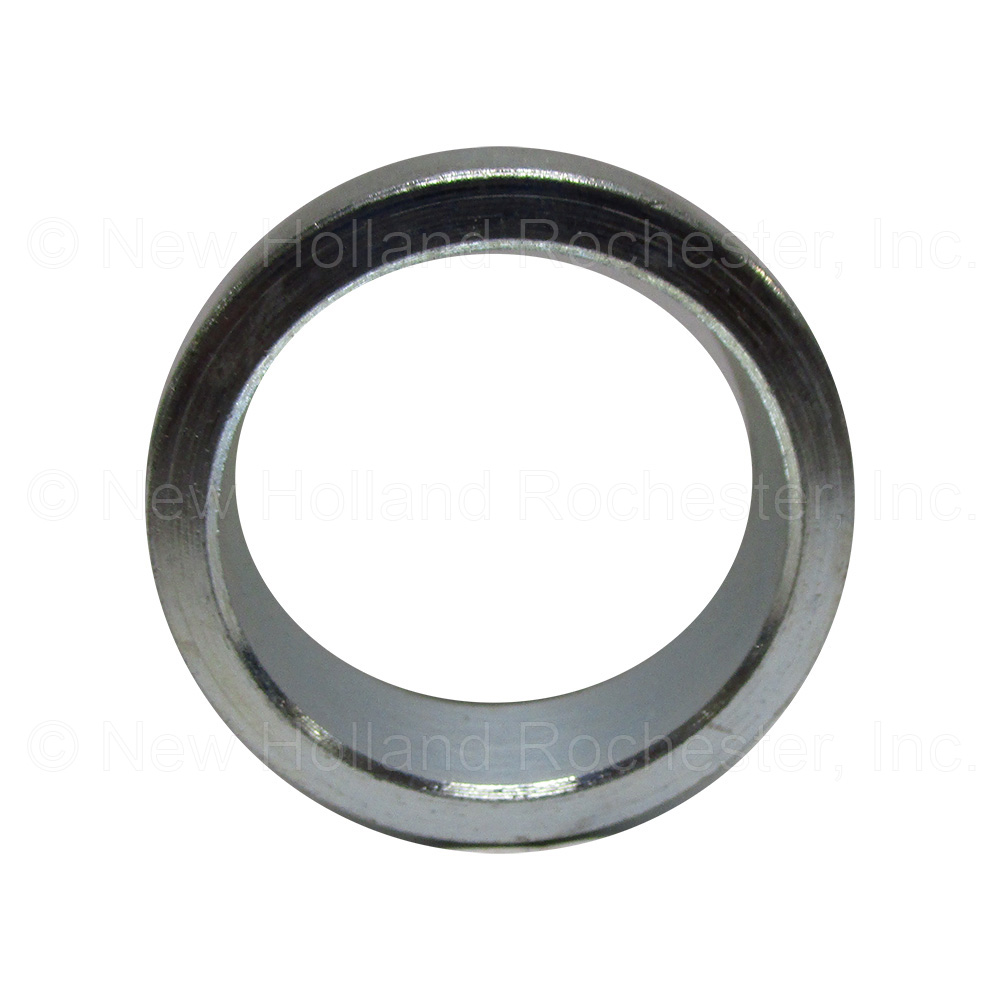

31 |
|
Woods Spacer Part # 603812
|
|
32 |
|
Grasshopper Mount Bracket Part # 643144
|
|
33 |
|
Grasshopper Gas Cap Part # 141125
|
|
34 |
|
Grasshopper Fuel Draw Tube Part # 101818
|
|

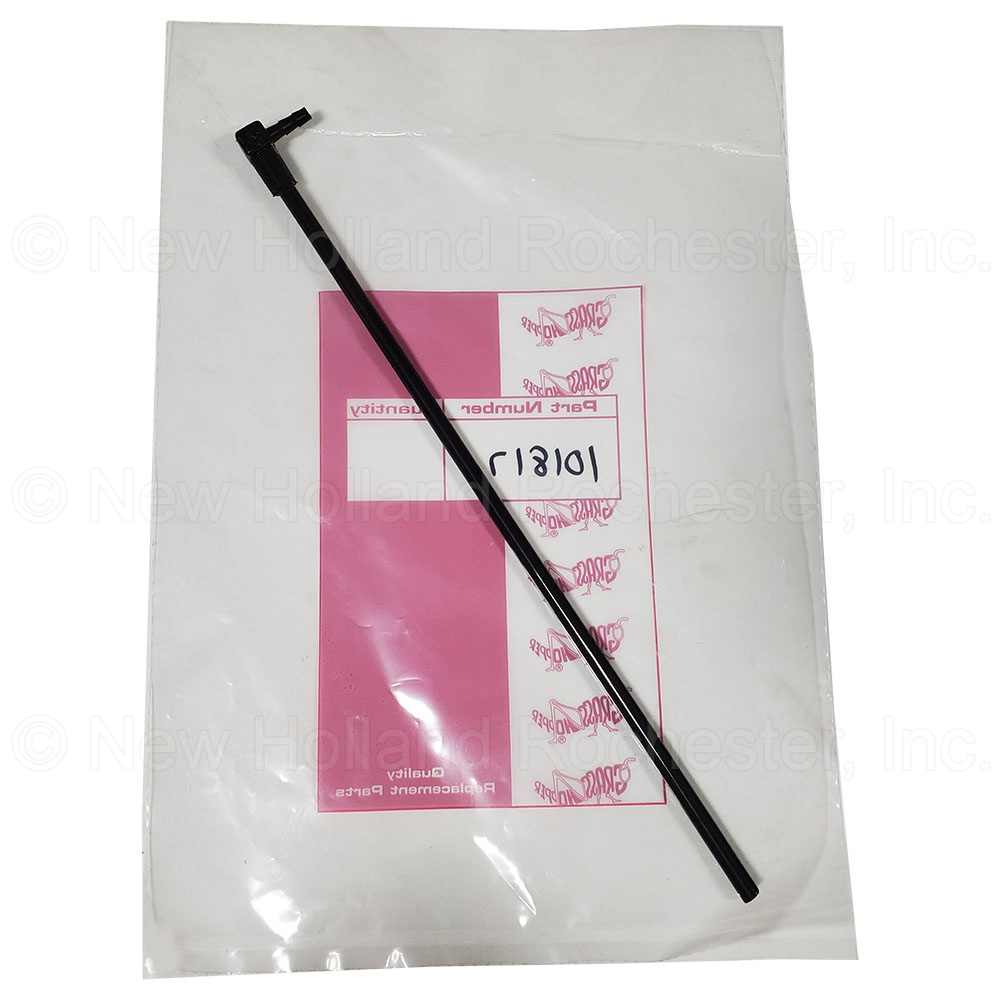

35 |
|
Grasshopper Fuel Draw Tube Part # 101817
|
|
36 |
|
Grasshopper Clamp Part # 280257
|
|

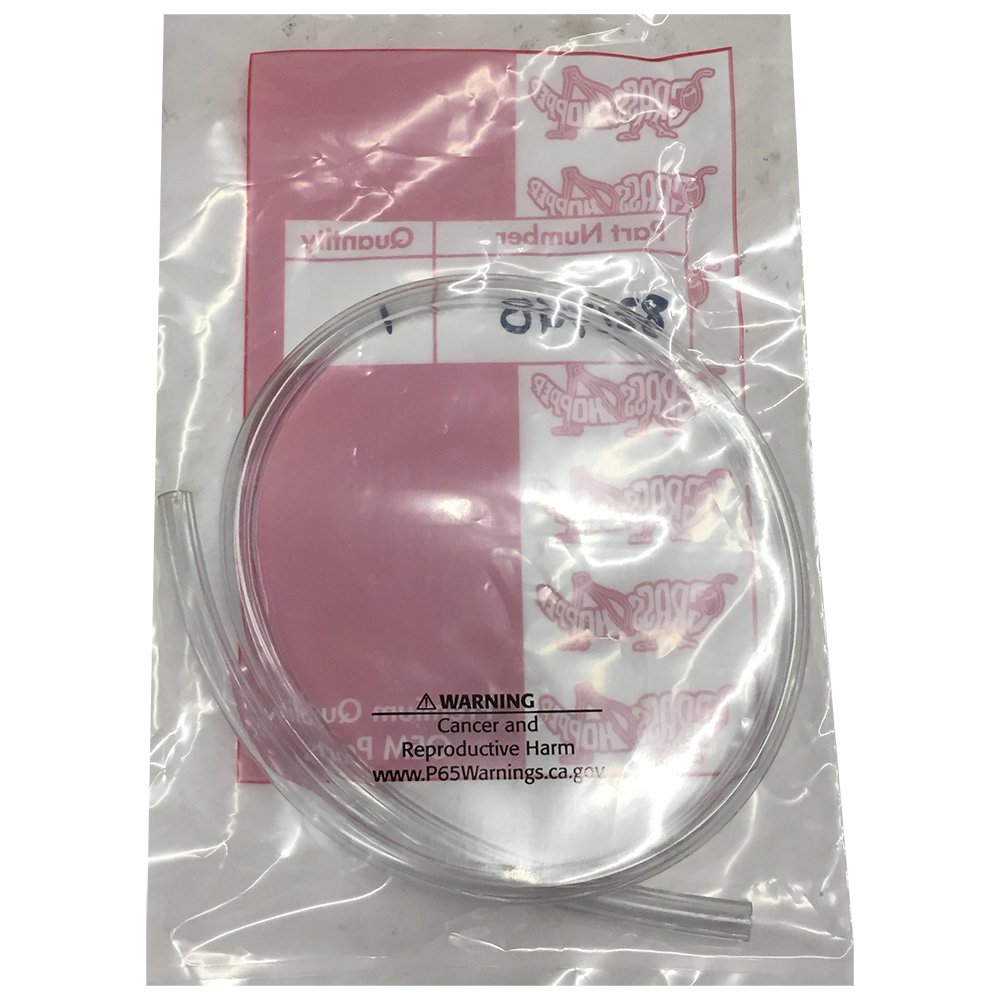

37 |
|
Grasshopper Return Fuel Line Hose Part # 821740
|
|
38 |
|
Grasshopper Hinge Part # 422065
|
|
39 |
|
Grasshopper Quick-Disconnect Deck Right Mount Part # 643092
|
|
40 |
|
Grasshopper Quick-Disconnect Deck Left Mount Part # 643093
|
|
41 |
|
Grasshopper Bolt Part # 247280
|
|
42 |
|
Grasshopper Bushing Part # 282575
|
|
43 |
|
Grasshopper Bushing Part # 282576
|
|
44 |
|
Grasshopper Nut Part # 253460
|
|
45 |
|
Grasshopper Foot Platform Part # 604346
|
|
46 |
|
Grasshopper Foot Rest Tread Part # 420905
|
|
47 |
|
Grasshopper Nylon Bearing Part # 422615
|
|
48 |
|
Grasshopper Foot Platform Pivot Rod Part # 780673
|
|
49 |
|
Grasshopper Nylon Insert Nut Part # 253470
|
|
50 |
|
Grasshopper Rubber Bumper Part # 424052
|
|
51 |
|
Grasshopper 700 Foot Platform Extension Part # 603301
|
|
52 |
|
Grasshopper Foot Rest Extension Tread Part # 420904
|
|
53 |
|
Grasshopper Carriage Bolt Part # 247130
|
|
54 |
|
Grasshopper 721D Decal Set Part # 603272
|
