Assembly: Tractor Assembly-411r (1990)

#		Part
1		Grasshopper 411R Hood & Fender Assy Part # 603541 $727.80 Add to cart
2		Grasshopper 411 Right Fender Assy Part # 603336 $88.20 Add to cart
3		Grasshopper 411 Left Fender Assy Part # 603337 $88.70 Add to cart
4		Grasshopper 411 Seat Assy Part # 603752 $299.50 Add to cart
5		Grasshopper Fender Edge Trim Part # 822631 $3.80 Add to cart
6		Grasshopper Tractor Frame Part # 643374 $0.00 Add to cart
7		Grasshopper Hood Retaining Bracket Part # 774016 $1.65 Add to cart
8		Grasshopper Console Panel Part # 721172 $41.80 Add to cart
9		Grasshopper Mechanical Throttle Part # 142315 $19.70 Add to cart
10		Grasshopper Mechanical Choke Part # 142226 $15.45 Add to cart
11		Grasshopper Bracket Part # 721051 $6.90 Add to cart
12		Grasshopper Brake Lever Part # 643514 $62.00 Add to cart
13		Grasshopper Handle Grip Part # 422160 $4.90 Add to cart
14		Grasshopper Brake Linkage Rod Part # 730290 $12.95 Add to cart
15		New Holland Yoke Part # 265537 $6.00 Add to cart
16		Grasshopper Clevis Pin Part # 261284 $0.70 Add to cart
17		Grasshopper Cotter Pin Part # 260628 $0.05 Add to cart
18		Grasshopper Nut Part # 254441 $0.11 Add to cart
19		Grasshopper Flap Hinge Part # 820120 $24.80 Add to cart
20		Grasshopper Flap Bolt Strap Part # 772035 $5.55 Add to cart
21		Grasshopper Neoprene Flap Part # 424175 $11.45 Add to cart
22		Grasshopper Rubber Bumper Part # 424052 $3.40 Add to cart
23		Grasshopper Collar Part # 280440 $5.15 Add to cart
24		Grasshopper Flanged Bushing Part # 833260 $12.55 Add to cart
25		Grasshopper Rear Fork Part # 643367 $87.20 Add to cart
26		Grasshopper Spacer Part # 902425 $4.65 Add to cart
27		Grasshopper Ball Bearing Part # 120050 $13.60 Add to cart
28		Grasshopper Spacer Part # 902475 $8.20 Add to cart
29		Grasshopper Wheel & Tire Assy Part # 483861 $119.10 Add to cart
30		Grasshopper Carriage Bolt Part # 247726 $6.30 Add to cart
31		Grasshopper Lock Nut Part # 253970 $0.81 Add to cart
32		Grasshopper Drive Chain Sield Part # 722306 $26.25 Add to cart
33		Grasshopper Drive Chain Sield Part # 722307 $26.25 Add to cart
34		Grasshopper Anti-Tilt Bracket Part # 643137 $13.30 Add to cart
35		Grasshopper Anti-Tilt Right Stop Part # 643777 $12.60 Add to cart
36		Grasshopper Anti-Tilt Left Stop Part # 643778 $12.60 Add to cart
37		Grasshopper Clamp Plate Part # 783528 $16.25 Add to cart
38		Grasshopper Cluster Sprocket Mount Block Part # 783831 $29.40 Add to cart
39		Grasshopper Socket Head Screw Part # 259636 $1.30 Add to cart
40		Grasshopper Spacer Part # 902292 $6.80 Add to cart
41		Grasshopper Washer Part # 774019 $6.55 Add to cart
42		Grasshopper Cluster Sprocket Assy Part # 603225 $173.45 Add to cart
43		Grasshopper Grade 8 Hex Bolt Part # 245226 $0.00 Add to cart
44		Grasshopper Chain Part # 385272 $20.00 Add to cart
45		Grasshopper Chain Part # 385252 $8.10 Add to cart
46		Grasshopper Tapered Mount Axle Part # 883155 $65.45 Add to cart
47		Grasshopper Flange Top Lock Nut Part # 253100 $4.15 Add to cart
48		Grasshopper Bearing Part # 122522 $8.85 Add to cart
49		Grasshopper Bearing Cup Part # 123522 $2.55 Add to cart
50		Grasshopper Washer Part # 257091 $0.72 Add to cart
51		Grasshopper Nut Part # 254502 $1.50 Add to cart
52		Grasshopper Cotter Pin Part # 260668 $0.06 Add to cart

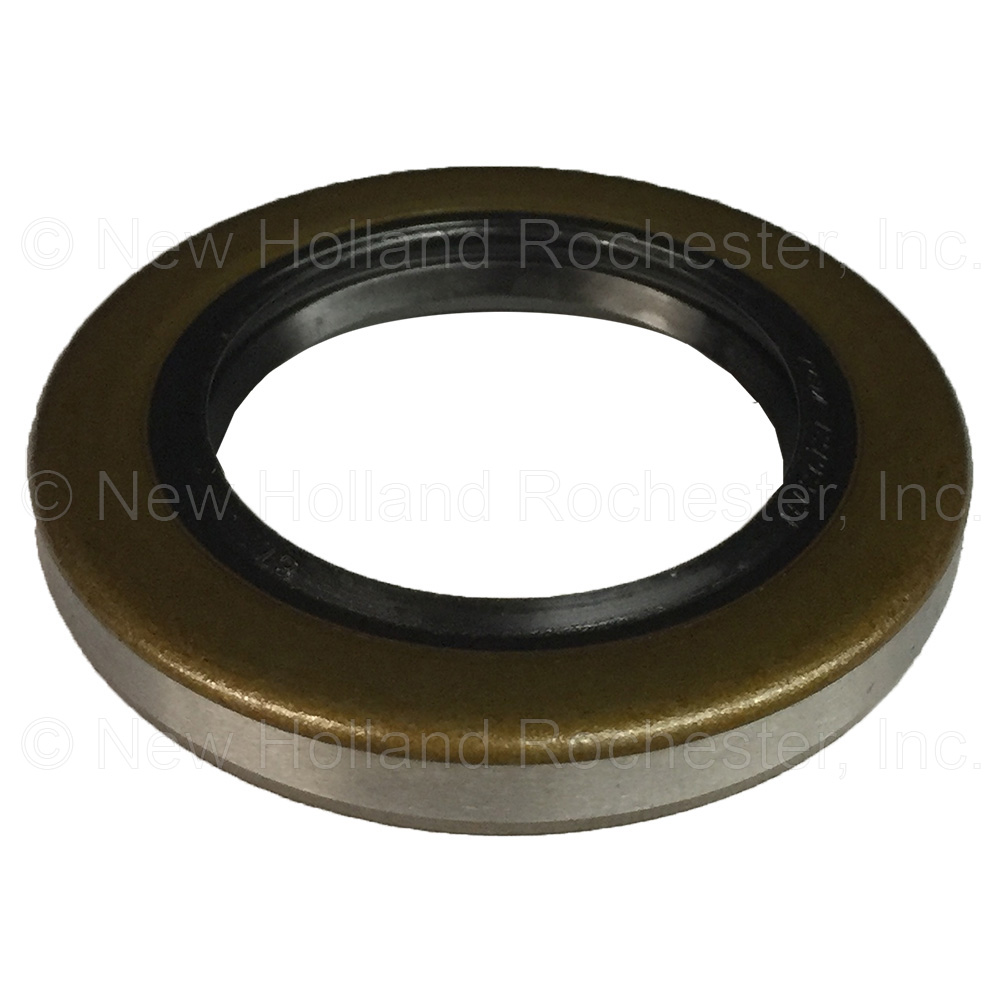

53		Grasshopper Seal Part # 125525 $9.20 Add to cart
54		Grasshopper Dust Cap Part # 481432 $3.60 Add to cart
55		Grasshopper Hub Assembly Part # 603427 $179.40 Add to cart

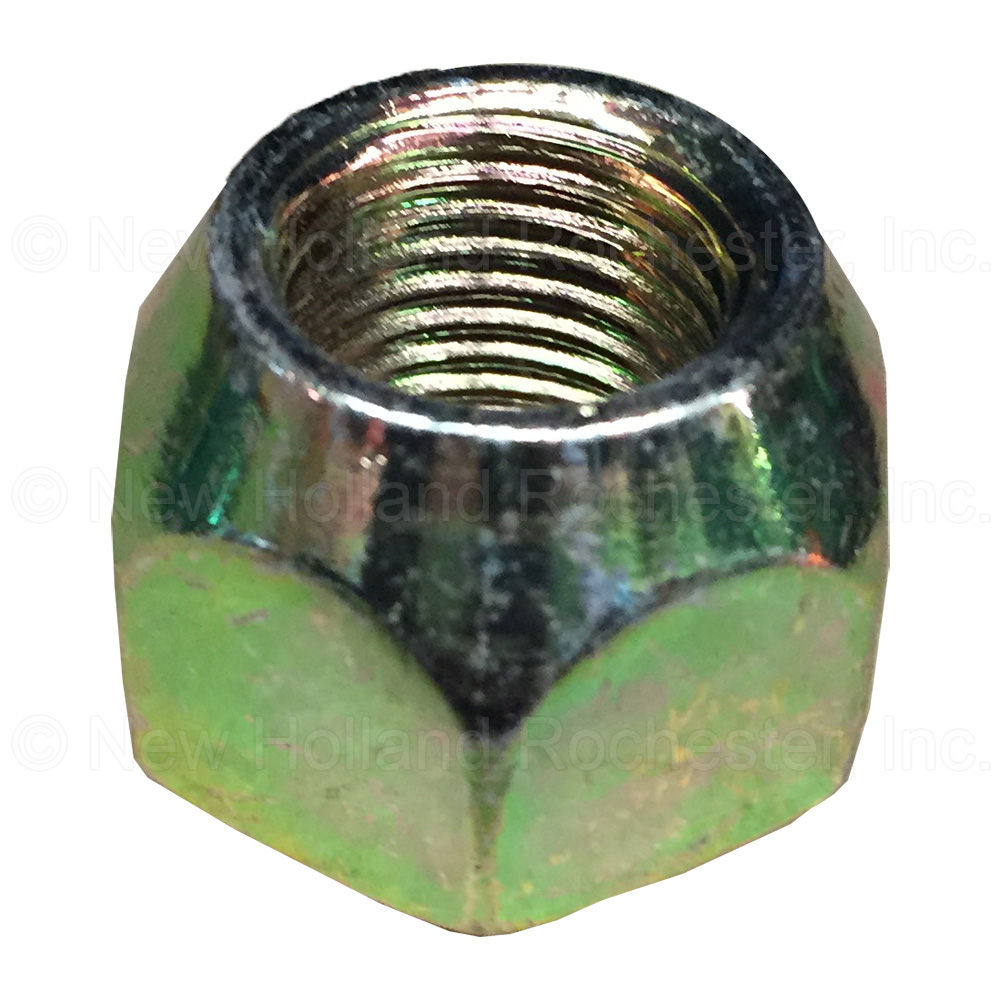

56		Grasshopper Lug Nut Part # 254472 $0.90 Add to cart
57		Grasshopper Turf Wheel & Tire Part # 483903 $96.25 Add to cart
58		Grasshopper Support Part # 782514 $8.65 Add to cart
59		Grasshopper Support Part # 643798 $17.25 Add to cart
60		Grasshopper 1/2" Lock Washer Part # 257432 $0.16 Add to cart

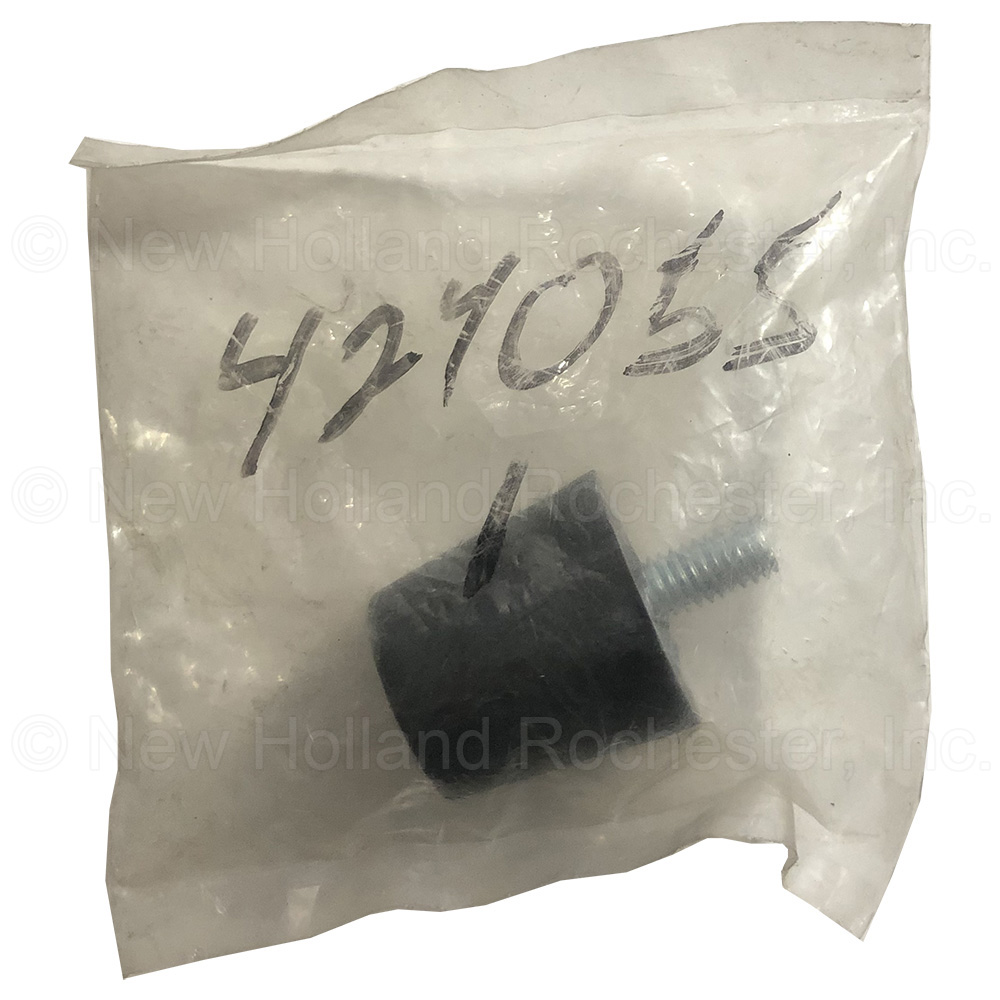

61		Grasshopper Rubber Bumper Part # 424055 $3.30 Add to cart
62		Grasshopper 411 Decal Set Part # 603260 $72.35 Add to cart
