Assembly: Tractor Assembly (1985)

# Part
1 FRAME - TRACTOR #643381
$0.00 Add to cart
2 Grasshopper Needle Bearing Part # 121590
$8.35 Add to cart
3 Grasshopper Collar Part # 280440
$5.15 Add to cart
4 Grasshopper Hinge Part # 422065
$0.45 Add to cart
5 ENGINE - 12HP KOHLER #100110
$0.00 Add to cart

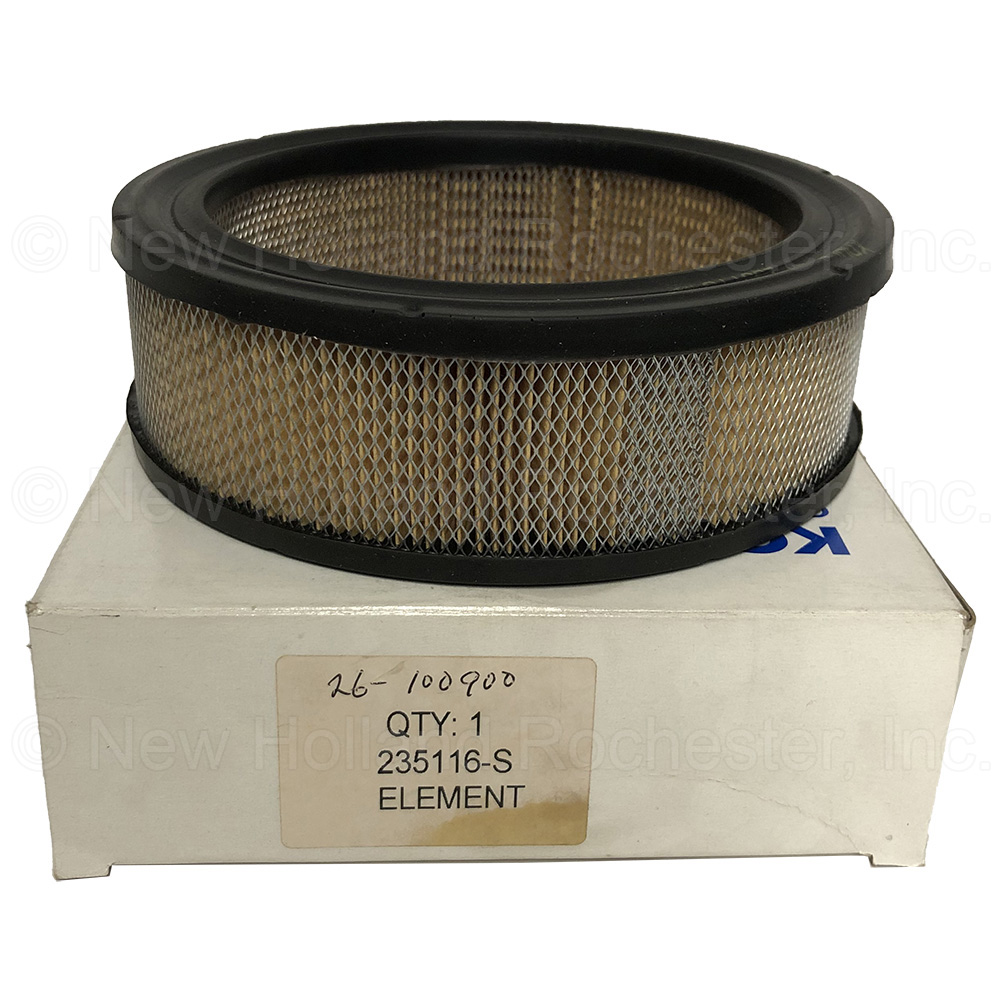

6 Grasshopper 12HP Kohler Air Filter Part # 100900
$17.25 Add to cart
7 MUFFLER - 1210/1212 #643585
$315.50 Add to cart
8 SHIELD - AIR DEFLECTOR 12HP #643745
$49.90 Add to cart
9 SHIELD - MUFFLER HEAT #722370
$35.40 Add to cart
10 Grasshopper Handle Grip Part # 422160
$4.90 Add to cart

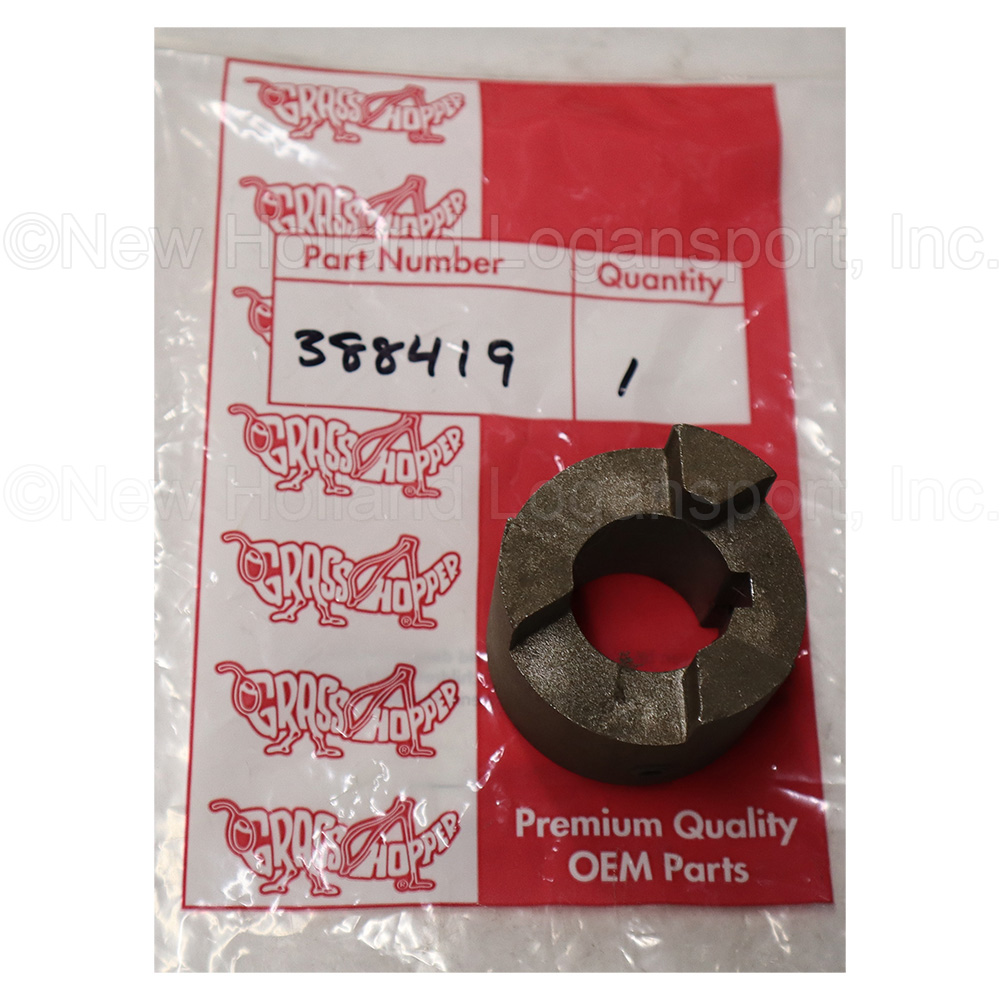

11 Grasshopper Coupler Part # 388419
$29.75 Add to cart
12 SHIELD - MUFFLER HEAT LOWER #722245
$18.45 Add to cart
13 Grasshopper Bumper Part # 424015
$1.00 Add to cart
14 ROD - LINKAGE BRAKE ADJUSTABLE #730305
$12.15 Add to cart
15 LEVER - BRAKE BAND #643518
$38.30 Add to cart
16 LEVER - STEERING LT #643535
$25.20 Add to cart
17 FENDER EXTENDED LT #643341
$162.55 Add to cart
18 FENDER EXTENDED RT #643340
$168.15 Add to cart
19 BOLT SHOULDER #259741
$2.60 Add to cart
20 Grasshopper Mechanical Throttle Part # 142320
$36.30 Add to cart
21 LEVER - STEERING RT #643534
$27.10 Add to cart
22 FOOT REST #643710
$137.20 Add to cart
23 Grasshopper Dust Cap Part # 481432
$3.60 Add to cart
24 Grasshopper Nut Part # 254502
$1.50 Add to cart
25 COTTER PIN #260670
$0.15 Add to cart
26 Grasshopper Washer Part # 257091
$0.72 Add to cart
27 Grasshopper Bearing Part # 122522
$8.85 Add to cart
28 Grasshopper Bearing Cup Part # 123522
$2.55 Add to cart
29 HUB ASSEMBLY #603427
$179.40 Add to cart
30 AXLE - TAPERED MOUNT #883155
$65.45 Add to cart
31 Grasshopper Seal Part # 125525
$9.20 Add to cart
32 NUT - FLANGE TOP LOCK #253100
$4.15 Add to cart
33 WHEEL & TIRE TURF #483900
$122.10 Add to cart
34 CHAIN #385290
$27.70 Add to cart
35 FORK - SOLID SHANK REAR #643368
$119.70 Add to cart
36 Grasshopper Spacer Part # 902425
$4.65 Add to cart
37 Grasshopper Ball Bearing Part # 120050
$13.60 Add to cart
38 Grasshopper Wheel & Tire Assy Part # 483861
$119.10 Add to cart
39 Grasshopper Spacer Part # 902475
$8.20 Add to cart
40 Grasshopper Carriage Bolt Part # 247726
$6.30 Add to cart
41 PIVOT - STEERING LEVER LT #643637
$51.95 Add to cart
42 Grasshopper Compression Spring Part # 283324
$0.95 Add to cart
43 Grasshopper Washer Part # 257063
$0.17 Add to cart
44 NUT - INSERT - NYLON #253470
$0.30 Add to cart
45 COTTER PIN #260654
$0.05 Add to cart
46 NYLON BEARING #422560
$0.80 Add to cart
47 Grasshopper Nylon Bearing Part # 422580
$0.85 Add to cart
48 SPRING - COMPRESSION #283325
$2.65 Add to cart
