Assembly: Wiring Diagram (1995)

#
Part
1 Grasshopper Key Part # 183806
$12.35 Add to cart
2 Grasshopper Light Indicator Part # 182326
$6.60 Add to cart
3 Grasshopper Rocker Switch Part # 184179
$10.85 Add to cart
4 Grasshopper Push / Pull Switch Part # 183925
$14.99 Add to cart
5 Grasshopper Lever Switch Part # 183860
$7.40 Add to cart
6 Grasshopper Lever Switch Part # 183860
$7.40 Add to cart
7 Grasshopper Seat Switch Part # 183870
$10.65 Add to cart
8 Grasshopper Worklight Assy Part # 603400
$38.23 Add to cart
9 Grasshopper Rectangular Lamp Housing Part # 182350
$13.65 Add to cart
10 Grasshopper Light Assy Gasket Part # 420550
$1.75 Add to cart
11 Grasshopper Lamp Lens Part # 182400
$184.40 Add to cart
12 Grasshopper Worklamp Light Bulb Part # 182000
$4.35 Add to cart
13 Grasshopper Screw Part # 252057
$0.05 Add to cart
14 Grasshopper Worklight Clamp Part # 720163
$6.70 Add to cart
15 Grasshopper Module Part # 200910
$18.95 Add to cart
16 Grasshopper Block Part # 181722
$3.75 Add to cart
17 Grasshopper Fuse Part # 181470
$0.70 Add to cart
18 Grasshopper Snap-In Hour Meter Part # 141551
$35.62 Add to cart
19 Grasshopper Valve Part # 183894
$6.60 Add to cart
20 Grasshopper 12V Battery Part # 180125
$1.00 Add to cart
21 Grasshopper Battery Hold Down Part # 822410
$39.65 Add to cart
22 Grasshopper Hex Bolt Part # 243280
$1.80 Add to cart
23 Grasshopper Solenoid Switch 4-Post Relay Part # 184251
$21.75 Add to cart
24 Grasshopper Battery Cable Part # 180309
$5.15 Add to cart
25 Grasshopper Battery Cable Part # 180315
$7.00 Add to cart
26 Grasshopper 20" Battery Cable Part # 180280
$7.35 Add to cart

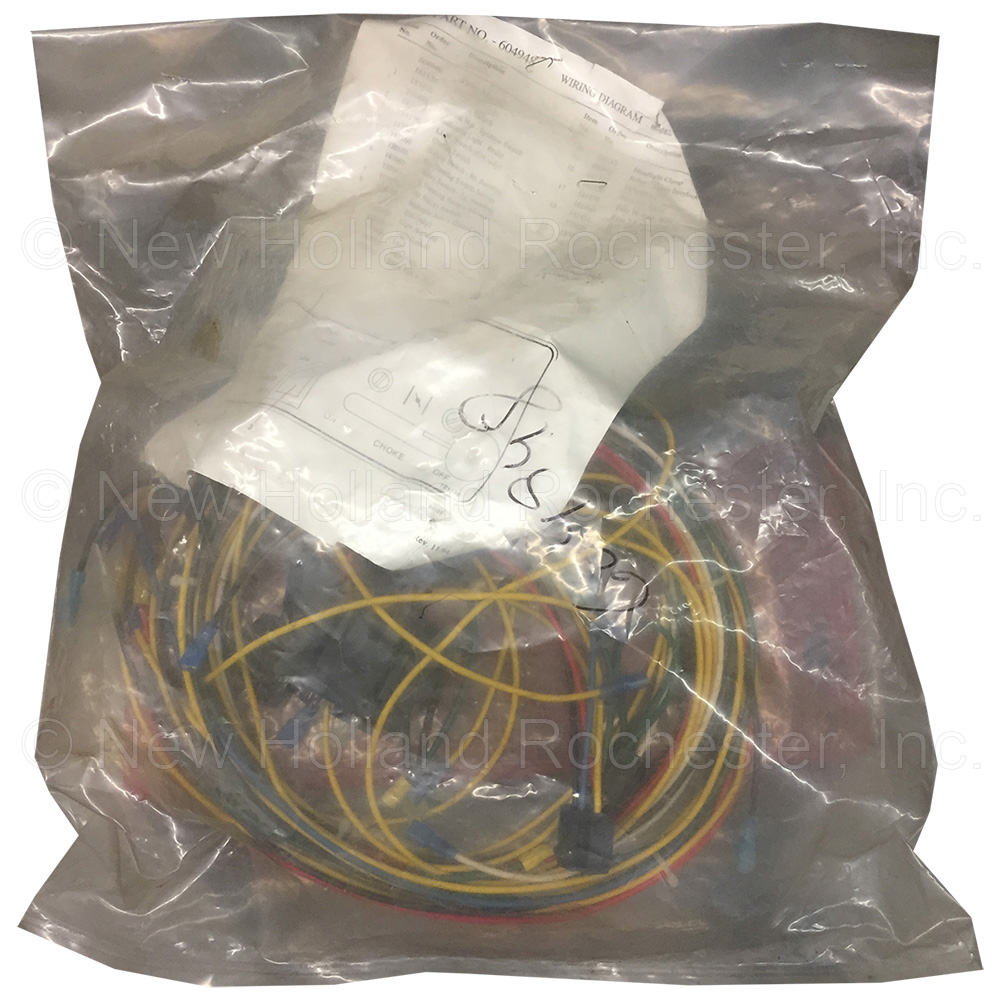

27 Grasshopper Wiring Assembly Part # 604948
$355.15 Add to cart
28 Grasshopper Console Decal Part # 161136
$0.00 Add to cart
