Assembly: Wiring Diagram (1997)

#
Part
1 Grasshopper Temp Zoned Electric Gauge Part # 141160
$213.20 Add to cart
2 Grasshopper Voltmeter Gauge Part # 141200
$73.50 Add to cart
3 Grasshopper Light Indicator Part # 182327
$6.60 Add to cart
4 Grasshopper Light Indicator Part # 182328
$6.60 Add to cart
5 Grasshopper Light Indicator Part # 182325
$6.60 Add to cart
6 Grasshopper Light Indicator Part # 182326
$6.60 Add to cart
7 Grasshopper Rocker Switch Part # 184179
$10.85 Add to cart
8 Grasshopper Push / Pull Switch Part # 183925
$14.99 Add to cart
9 Grasshopper Key Switch Part # 183827
$92.30 Add to cart
10 Grasshopper Lever Switch Part # 183860
$7.40 Add to cart
11 Grasshopper Lever Switch Part # 183860
$7.40 Add to cart
12 Grasshopper Flood Worklamp Part # 182253
$42.35 Add to cart
13 Grasshopper Worklamp Light Bulb Part # 182005
$7.30 Add to cart
14 Grasshopper Snap Mount Worklamp Bezel Part # 182251
$9.70 Add to cart
15 Grasshopper Battery Cable Part # 180310
$5.50 Add to cart
16 Grasshopper Battery Cable Part # 180276
$7.00 Add to cart
17 Grasshopper Electric Fuel Pump Part # 101510
$199.30 Add to cart
18 Grasshopper Temperature Sensor Part # 141222
$35.20 Add to cart
19 Grasshopper Seat Switch Part # 183870
$10.65 Add to cart
20 Grasshopper 12VDC Relay Part # 184272
$10.65 Add to cart
21 Grasshopper Block Part # 181722
$3.75 Add to cart
22 Grasshopper Fuse Part # 181470
$0.70 Add to cart
23 Grasshopper Snap-In Hour Meter Part # 141551
$35.62 Add to cart
24 Grasshopper Valve Part # 183894
$6.60 Add to cart
25 Grasshopper 12V Voltage Regulator Part # 185530
$210.40 Add to cart
26 Grasshopper 12V Battery Part # 180130
$1.00 Add to cart

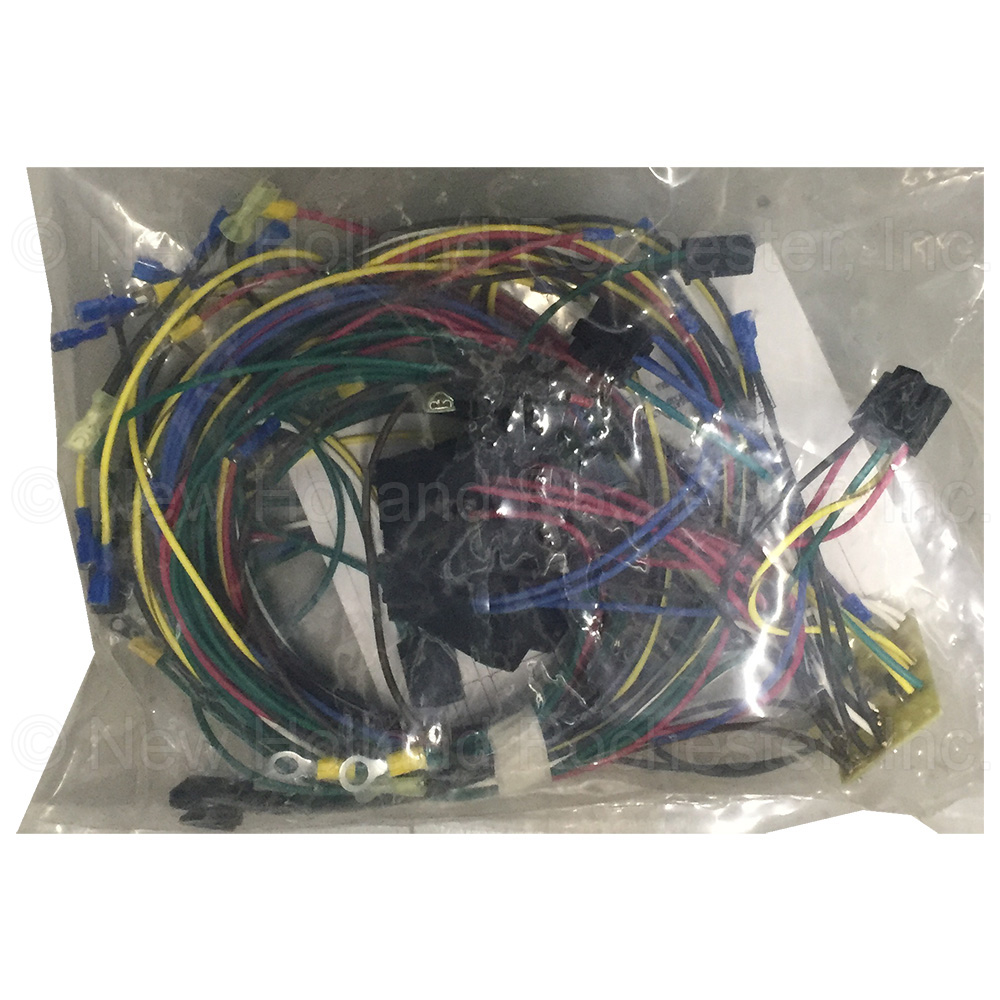

27 Grasshopper Main Harness Part # 604976
$403.85 Add to cart
28 Grasshopper Console Decal Part # 161132
$0.00 Add to cart
