Enhance your precision farming setup with some of the several camera kits and accessories we have available to work with many different New Holland and all-makes displays. Listed below are some of our most popular items available.
Adapter Cables

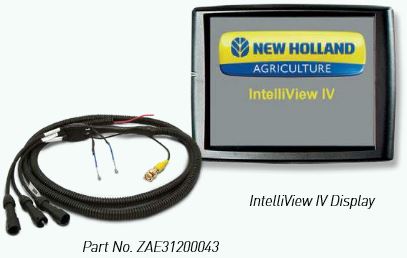

– Intelliview IV Display Adapter Cable (Part # ZAE31200043)*
- Works with any Voyager camera
- Allows for up to 3 camera inputs

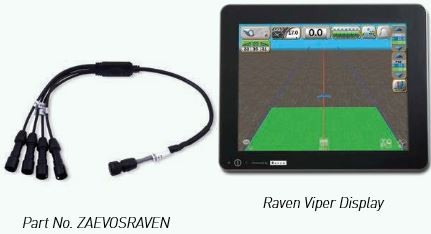

– Raven Viper Display Adapter Cable (Part # ZAEVOSRAVEN)*
- Works with any Voyager camera

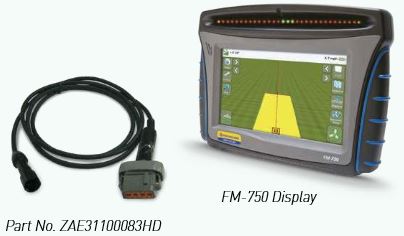

– XCN-2050™ / XCN-1050™ / FM-1000™ / FM-750™ Display Adapter Cable (Part # ZAE31100083HD)*
- Works with any Voyager camera

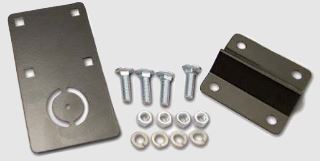

– Universal Camera Mount (Part # ZAEUCMNTHD)
Allows mounting of the ZAEVCMS155BHD camera to a round railing or a flat surface as well as turn and adjust the camera to virtually any angle.
* If non-mirrored image is required you must use Part # ZAEVCMS155BHD camera.
Extension Cables

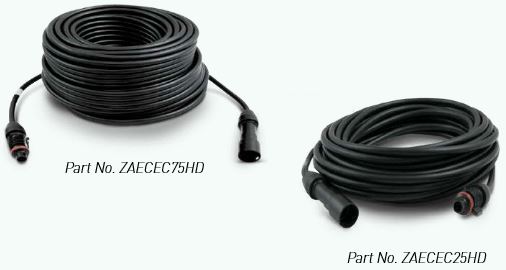

– Voyager Extension Cables (Part # ZAECEC25HD (25′) / ZAECEC50HD (50′) / ZAECEC75HD (75′))
- Noncorrosive locking connectors with 4-pin round plug
- Fully weatherproof connectors on both ends allows multiple “daisy chain” connections up to 200 ft. max.
- Camera cable is impervious to chemicals, oils, gasoline, salt, etc.
Cameras
– Super CMOS Cylinder Color Observation Camera (Part # ZAEVCMSYL36i)
- Electronic iris
- Waterproof (IPX7)
- 12 volt DC power
- Viewing angle: 131 degrees
- Low-light enhancement (O Lux with IR LED on)
- Image orientation: mirror (reversed)
- Rugged machined aluminum body
- 1.25″ W x 1.25″ H x 1.5″ D
– Voyager CMOS Color Camera (Part # ZAEVCMS155BHD)
- Electronic iris
- Waterproof (IPX69)
- 12 volt DC power
- Viewing angle: 140 degrees
- Low-light enhancement (O Lux with IR LED on)
- Microphone
- Image orientation: mirror (reversed) and normal
- 2.7″ W x 1.7″ H x 5″ D
– Voyager Rear Color Camera (Part # ZAEVCM17B)
- High-performance color optics
- Waterproof (IP69K)
- 12 volt DC power
- Image orientation: mirror (reversed)
- Excellent low light and bright daylight performance
- 12 IR LEDs
- Microphone
- 2.76″ W x 1.76″ H x 2.07″ D
– Voyager Rear Color Camera (Part # ZAEVCMS50i)
- High-performance CMOS sensor
- Waterproof (IP69K)
- Viewing angles: 150 / 120 / 90 degrees
- Low-light assist with IR LEDs
- Image orientation: mirror (reversed)
- Microphone
- Corrosion resistant (ASTM B117)
- FCC, E9 certified
- 1″ W x 1″ H x 1.3″ D (without bracket)
Combine DIA Kits
– Part # 47822761 (Model Year 15 and later CR / CX Series combines)
Features:
- Efficient monitoring of auger (more effectively unload on the go)
Includes:
- 1 camera (part # 47768902)
- Mounting brackets, cable, and hardware
Compatibility
These are All-Makes Compatible Products:
For more information about our camera kits and accessories, call our Ag Technologies location (1268 E 100 S Rochester, IN 46975) at 574-223-2714.
