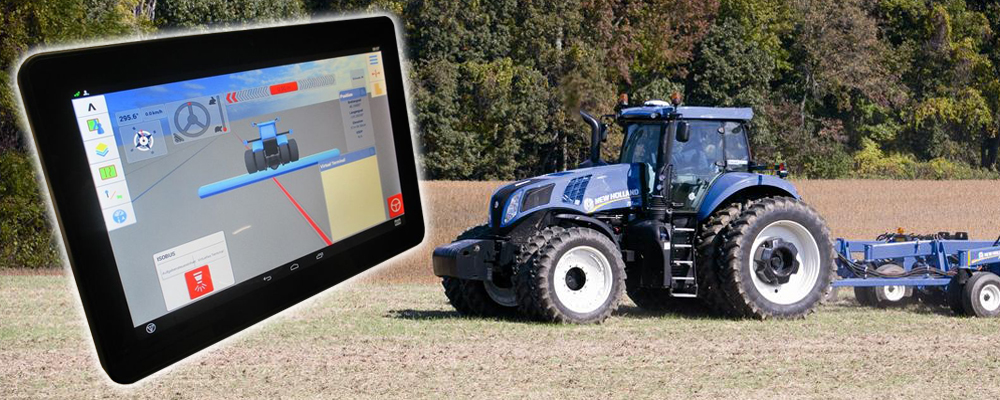

Trimble XCN-1050™ Display

Tackle farming applications for every season and across all your equipment brands with the new Trimble XCN-1050 display system with NAV-900. The XCN-1050 display is a sleek, easy-to-use display featuring a quad-core processor and the Precision-IQ™ field application software.

Display Features

  • 10″ high-definition color touchscreen display
  • Bluetooth® and WiFi capable
  • Includes Precision-IQ™ field application software
  • Front-facing 1.0 MP camera
  • Built-in VRS Daemon – connect to VRS networks via cell phone or other internet capable device

Guidance and Mapping

Application Control

  • Field-IQ™ Basic
    − Single liquid product control
    − Up to 24 individually controlled sections•
  • ISOBUS
    − Universal Terminal (UT)
    − Task Controller (TC) with multi-product control of up to 2 products
    −Section Controller (SC)
  • Serial Rate and TUVR (Universal Variable-Rate)

NAV-900

  • Integrates the GNSS receiver and Autopilot™ Guidance Controller in a single, roof-mounted enclosure
  • Powerful GNSS receiver supports GPS, GLONASS, Galileo, and Beidou satellite systems
  • Delivers faster RTX convergence times and more robust performance in areas where satellite visibility may be obstructed
  • Features quick release mounting adapter for New Holland and other brands for easy installation and transfer between vehicles

Display Comparison Chart

Here is how the Trimble XCN-1050 compares to other Trimble aftermarket display options:

Features XCN-2050 ™ XCN-1050 ™ FM-750 ™ EZ-Guide 250
Screen Size 12.1" (30.8cm) 10.1" (25.6cm) 8.0" (20.3cm) 4.3" (10.9cm)
Video Camera Inputs 1 1 2 None
Built-In GPS Receiver Yes Yes* Yes Yes
Built-In Bluetooth No Yes No No
Built-In WiFi No Yes No No
GLONASS Compatibility Standard Standard Upgrade N/A
Automated Steering Yes Yes Yes No
Autopilot™ Motor Drive Yes Yes Yes No
Assisted Steering Yes No Yes Yes
Row Guidance Yes No No No
Implement Guidance Yes No No No
ISOBUS Universal Terminal Yes Yes No No
ISOBUS Task Controller Yes Yes No No
ISOBUS Multi Product Control No Yes No No
Serial / TUVR Support Yes Yes Yes No
Variable-Rate Application Yes Yes Yes No
Automatic Section Control Yes Yes Yes No
Boom Height Control for Sprayers No No Yes No
Seed Monitoring Yes No Yes No
Water Management Yes No No No
Yield Monitoring Yes No Yes No
Trimble App Central Yes Yes No No
Vehicle Sync Yes No No No
NextSwath End-of-row Turn Yes Yes** No No
*In the NAV-900 **Not at initial release

Compatibility

This is an All-Makes Compatible Product:

For more information about the Trimble XCN-1050 display, call our Ag Technologies location (1268 E 100 S Rochester, IN 46975) at 574-223-2714.
