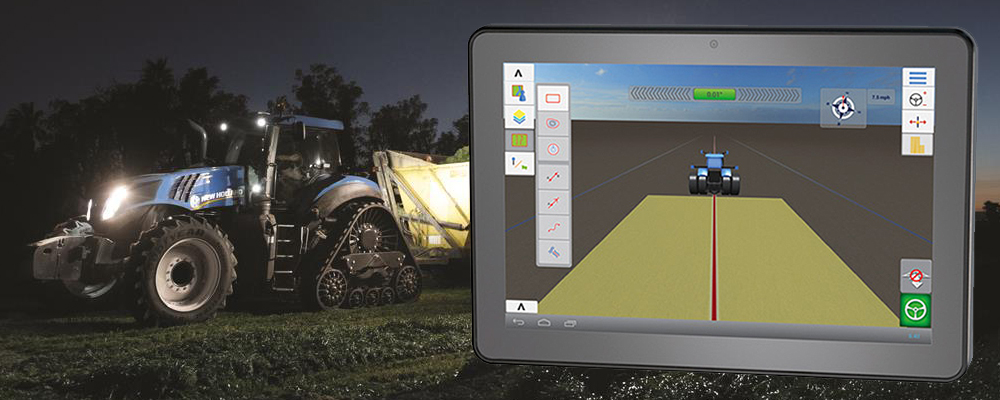

Trimble XCN-2050™ Display

The Trimble XCN-2050 display is an advanced, in-cab, multi-touch screen display, built on the Android™ operating system. The intuitive interface makes it easy for both beginning and advanced users to implement precision agriculture solutions.

Display Features

  • 12.3″ high-definition color touchscreen display
  • Integrated camera with support for an additional external camera
  • Customizable tablet-like interface
  • Choice of configurations with Precision-IQ™ and FM-1000™ Plus display software

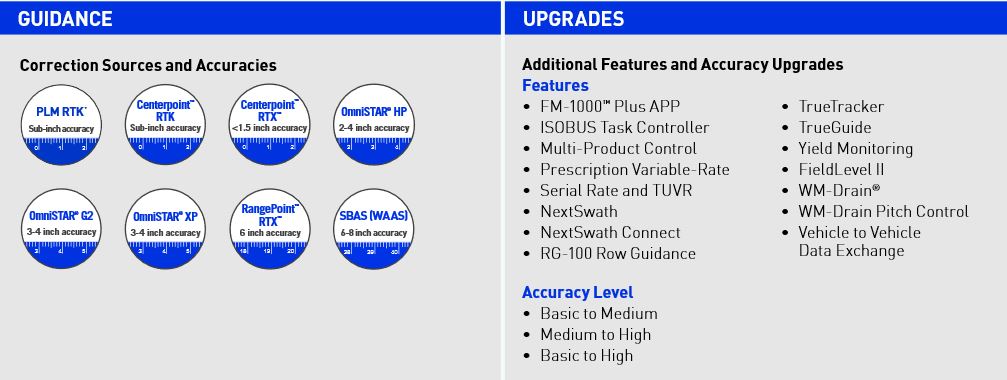

Guidance and Mapping

Application Control

  • Field-IQ™ crop input control:
    − Automatic section control for up to 48 sections
    − Variable-rate control of up to 6 products
  • ISOBUS section and variable-rate
  • Serial Rate and TUVR (Universal Variable-Rate)

Harvesting

  • Yield monitoring and mapping

Water Management

GNSS Receiver/Antenna

  • GLONASS standard
  • Upgradeable to medium and high accuracy
  • Second receiver module option
  • Integrated RTK radio module option

Display Comparison Chart

Here is how the Trimble XCN-2050 display specs compares to their other popular aftermarket displays:

Features XCN-2050 ™ XCN-1050 ™ FM-750 ™ EZ-Guide 250
Screen Size 12.1" (30.8cm) 10.1" (25.6cm) 8.0" (20.3cm) 4.3" (10.9cm)
Video Camera Inputs 1 1 2 None
Built-In GPS Receiver Yes Yes* Yes Yes
Built-In Bluetooth No Yes No No
Built-In WiFi No Yes No No
GLONASS Compatibility Standard Standard Upgrade N/A
Automated Steering Yes Yes Yes No
Autopilot™ Motor Drive Yes Yes Yes No
Assisted Steering Yes No Yes Yes
Row Guidance Yes No No No
Implement Guidance Yes No No No
ISOBUS Universal Terminal Yes Yes No No
ISOBUS Task Controller Yes Yes No No
ISOBUS Multi Product Control No Yes No No
Serial / TUVR Support Yes Yes Yes No
Variable-Rate Application Yes Yes Yes No
Automatic Section Control Yes Yes Yes No
Boom Height Control for Sprayers No No Yes No
Seed Monitoring Yes No Yes No
Water Management Yes No No No
Yield Monitoring Yes No Yes No
Trimble App Central Yes Yes No No
Vehicle Sync Yes No No No
NextSwath End-of-row Turn Yes Yes** No No
*In the NAV-900 **Not at initial release

Compatibility

This is an All-Makes Compatible Product:

For more information about the Trimble XCN-2050 aftermarket display, call our Ag Technologies location (1268 E 100 S Rochester, IN 46975) at 574-223-2714.
