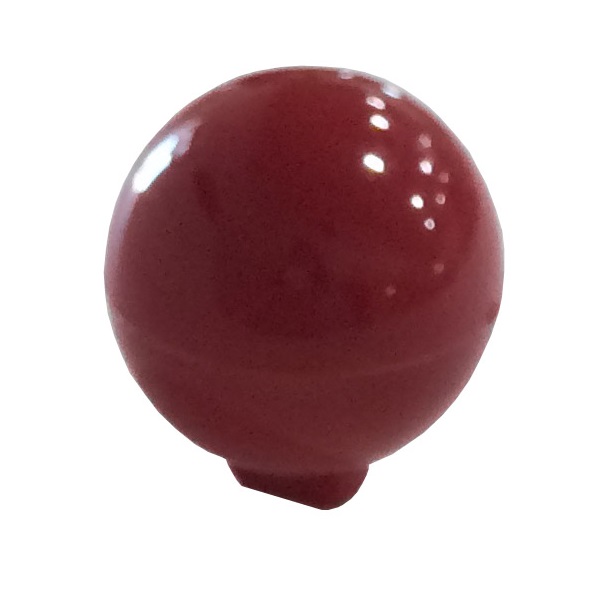

Exmark Ball Knob Part # 1-513592

Description

Replaces Part #: 513592

Exmark throttle cable red ball knob part # 1-513592 is used on models:

Explorer Series:

• EX1800 (None) Serial # None (1-850070)
• EXPLORER (All) Serial # 130000 and Up (850434)

FMD524, FMD604 Series:

• FMD524 (2005) Serial # 540000-599999 (103-9191)
• FMD604 (2005) Serial # 540000-599999 (103-9191)

Front Runner Air Cooled Series:

• FR20KC (2006) Serial # 600000-669999 (109-4817)
• FR23KC (2006) Serial # 600000-669999 (109-4817)
• FR27KC (2006) Serial # 600000-669999 (109-4817)

Lazer Z AC (Air Cooled) Series:

• LZ27KC604 (2005) Serial # 540000-599999 (103-9172)
• LZ23KC604 (2005) Serial # 540000-599999 (103-9173)
• LZ25KC524 (2005) Serial # 540000-599999 (103-9173)
• LZ25KC604 (2005) Serial # 540000-599999 (103-9173)
• LZ27KC524 (2005) Serial # 540000-599999 (103-9173)
• LZ27KC724 (2005) Serial # 540000-599999 (103-9173)
• LZ28KC604 (2005) Serial # 540000-599999 (103-9173)
• LZ28KC724 (2005) Serial # 540000-599999 (103-9173)
• LZ23KC605 (2006) Serial # 600000-669999 (109-2696)
• LZ27KC605 (2006) Serial # 600000-669999 (109-2696)
• LZ27KC665 (2006) Serial # 600000-669999 (109-2696)
• LZ28KC605 (2006) Serial # 600000-669999 (109-2696)
• LZ28KC665 (2006) Serial # 600000-669999 (109-2696)
• LZ30KC605 (2006) Serial # 600000-669999 (109-2696)
• LZ30KC665 (2006) Serial # 600000-669999 (109-2696)
• LZ30KC725 (2006) Serial # 600000-669999 (109-2696)
• LZ23KC605 (2007) Serial # 670000-719999 (109-7472)
• LZ27KC605 (2007) Serial # 670000-719999 (109-7472)
• LZ28KA605 (2007) Serial # 670000-719999 (109-7472)
• LZ28KA665 (2007) Serial # 670000-719999 (109-7472)
• LZ28KC605 (2007) Serial # 670000-719999 (109-7472)
• LZ28KC665 (2007) Serial # 670000-719999 (109-7472)
• LZ31BV605 (2007) Serial # 670000-719999 (109-7472)
• LZ31BV665 (2007) Serial # 670000-719999 (109-7472)
• LZ31BV725 (2007) Serial # 670000-719999 (109-7472)

Lazer Z AS (Advantage Series):

• LAZERZAS (2004) Serial # 440000-509999 (103-5504)
• LAZERZAS (2005) Serial # 510000-539999 (103-7215)
• LAZERZAS (2005) Serial # 540000-599999 (103-9171)
• LZ23KC524AS (2005) Serial # 540000-599999 (103-9171)
• LZ25KC604AS (2005) Serial # 540000-599999 (103-9171)
• LAS25KC604 (2006) Serial # 600000-669999 (109-0150)
• LASK23KC524 (2006) Serial # 600000-669999 (109-0150)
• LAS25KC604 (2007) Serial # 670000-719999 (109-6506)
• LAS25KC604B (2007) Serial # 670000-719999 (109-6506)
• LAS28KA524 (2007) Serial # 670000-719999 (109-6506)
• LAS28KA604 (2007) Serial # 670000-719999 (109-6506)
• LAS28KA724 (2007) Serial # 670000-719999 (109-6506)
• LAS28KA724B (2007) Serial # 670000-719999 (109-6506)

Lazer Z CT Series:

• LAZERZCT (2003) Serial # 370000-439999 (103-4114)
• LAZERZCT (2004) Serial # 440000-509999 (103-4859)
• LAZERZCT (2005) Serial # 510000-539999 (103-7222)
• LAZERZCT (2005) Serial # 540000-599999 (103-9181)
• LCT4418BV (2005) Serial # 540000-599999 (103-9181)
• LCT5218BV (2005) Serial # 540000-599999 (103-9181)
• LCT18BV483 (2006) Serial # 600000-669999 (109-2278)
• LCT21BV523 (2006) Serial # 600000-669999 (109-2278)
• LCT23BV603 (2006) Serial # 600000-669999 (109-2278)

Lazer Z HP Series:

• LAZERZHP (1997) Serial # 130000-159999 (850526)
• LAZERZHP (1998) Serial # 160000-189999 (850609)
• LAZERZHP (1999) Serial # 190000-219999 (850668)
• LAZERZHP (2000) Serial # 220000-259999 (103-0544)
• LAZERZHP (2001) Serial # 260000-319999 (103-0716)
• LAZERZHP (2002) Serial # 320000-369999 (103-1784)
• LAZERZHP (2003) Serial # 370000-439999 (103-3016)
• LAZERZHP (2004) Serial # 440000-509999 (103-4863)
• LAZERZHP (2005) Serial # 510000-539999 (103-7206)
• LAZERZHP (2005) Serial # 540000-599999 (103-9183)
• LHP4419KA (2005) Serial # 540000-599999 (103-9183)
• LHP4819KA (2005) Serial # 540000-599999 (103-9183)
• LHP4820KC (2005) Serial # 540000-599999 (103-9183)
• LHP4823KA (2005) Serial # 540000-599999 (103-9183)
• LHP5220KC (2005) Serial # 540000-599999 (103-9183)
• LHP5223KA (2005) Serial # 540000-599999 (103-9183)
• LHP5223KC (2005) Serial # 540000-599999 (103-9183)
• LHP19KA465 (2006) Serial # 600000-669999 (109-4654)
• LHP20KC505 (2006) Serial # 600000-669999 (109-4654)
• LHP23KA505 (2006) Serial # 600000-669999 (109-4654)
• LHP23KA565 (2006) Serial # 600000-669999 (109-4654)
• LHP27KC505 (2006) Serial # 600000-669999 (109-4654)
• LHP27KC565 (2006) Serial # 600000-669999 (109-4654)
• LHP19KA505 (2006) Serial # 600000-669999 (109-4654)

Lazer Z LC (Liquid Cooled) Series:

• LAZERZLQ (2000) Serial # 252000-259999 (103-0495)
• LAZERZLQ (2001) Serial # 260000-319999 (103-0656)
• LAZERZLQ (2002) Serial # 320000-369999 (103-1781)
• LAZERZLQ (2003) Serial # 370000-439999 (103-3059)
• LAZERZLQ (2004) Serial # 440000-509999 (103-5506)
• LAZERZLQ (2005) Serial # 510000-539999 (103-7212)
• LAZERZLQ (2005) Serial # 540000-599999 (103-9175)
• LZ27LKA604 (2005) Serial # 540000-599999 (103-9175)
• LZ27LKA724 (2005) Serial # 540000-599999 (103-9175)
• LAZERZLQ (1999) Serial # 190000-219999 (850613)
• LAZERZLQ (2000) Serial # 220000-251999 (850658)

Lazer Z XP Series:

• LAZERZXP (2001) Serial # 260000-319999 (103-1431)
• LAZERZXP (2002) Serial # 320000-369999 (103-1778)
• LAZERZXP (2003) Serial # 370000-439999 (103-2984)
• LAZERZXP (2004) Serial # 440000-509999 (103-4779)
• LAZERZXP (2005) Serial # 510000-539999 (103-7371)
• LZ27DD604 (2005) Serial # 540000-599999 (103-9179)
• LZ27DD724 (2005) Serial # 540000-599999 (103-9179)

Lazer Z XS Series:

• LAZERZXS (2004) Serial # 440000-509999 (103-6699)
• LAZERZXS (2005) Serial # 510000-539999 (103-8321)
• LAZERZXS (2005) Serial # 540000-599999 (103-9177)
• LZ31BV604 (2005) Serial # 540000-599999 (103-9177)
• LZ31BV724 (2005) Serial # 540000-599999 (103-9177)

Lazer Z XS Air Cooled Series:

• LXS31BV605 (2006) Serial # 600000-669999 (109-4570)
• LXS35BV725 (2006) Serial # 600000-669999 (109-4570)
• LXS31BV665 (2006) Serial # 600000-669999 (109-4570)

Lazer Z XS Liquid Cooled Series:

• LXS29LKA605 (2006) Serial # 600000-669999 (109-4580)
• LXS29LKA665 (2006) Serial # 600000-669999 (109-4580)
• LXS29LKA725 (2006) Serial # 600000-669999 (109-4580)

Lazer Z, Lazer Z EFI Series:

• LAZERZ (1997) Serial # 130000-159999 (850416)
• LAZERZ (1998) Serial # 160000-189999 (850573)
• LAZERZ (1999) Serial # 190000-219999 (850613)
• LAZERZ (2000) Serial # 220000-251999 (850658)
• LAZERZ (2000) Serial # 252000-259999 (103-0495)
• LAZERZ (2001) Serial # 260000-319999 (103-0656)
• LAZERZ (2002) Serial # 320000-369999 (103-1781)
• LAZERZ (2003) Serial # 370000-439999 (103-3059)
• LAZERZ (2004) Serial # 440000-509999 (103-4693)
• LAZERZ (2005) Serial # 510000-539999 (103-7209)
• LAZERZ (2005) Serial # 540000-599999 (103-9173)

Metro Series:

• METRO (1997) Serial # 130000-159999 (850420)
• METRO (1998) Serial # 160000-189999 (850515)
• METRO (1999) Serial # 190000-219999 (850611)
• METRO (2000) Serial # 220000-251999 (850652)
• METRO (2001) Serial # 260000-319999 (103-0571)
• METRO (2002) Serial # 320000-369999 (103-1622)
• METRO (2003) Serial # 370000-439999 (103-3635)
• METRO (2004) Serial # 440000-509999 (103-4874)
• METRO (2005) Serial # 510000-599999 (103-7191)
• M15KA322P (2006) Serial # 600000-669999 (103-9910)
• M15KA362 (2006) Serial # 600000-669999 (103-9910)
• M15KA362P (2006) Serial # 600000-669999 (103-9910)
• M15KA483 (2006) Serial # 600000-669999 (103-9910)
• M15KA483P (2006) Serial # 600000-669999 (103-9910)

Metro HP Series:

• METROHP (1997) Serial # 150000-159999 (850472)
• METROHP (1998) Serial # 160000-189999 (850472)
• METROHP (1999) Serial # 190000-219999 (850615)
• METROHP (2000) Serial # 220000-259999 (850663)
• METROHP (2001) Serial # 260000-319999 (103-0612)
• METROHP (2002) Serial # 320000-369999 (103-1714)
• METROHP (2003) Serial # 370000-439999 (103-2996)
• METROHP (2004) Serial # 440000-509999 (103-4876)
• METROHP (2005) Serial # 510000-539999 (103-7194)
• METROHP (2005) Serial # 540000-599999 (103-9185)
• MHP3615KAC (2005) Serial # 540000-599999 (103-9185)
• MHP4815KAC (2005) Serial # 540000-599999 (103-9185)

Navigator Series:

• NAVIGATOR (2005) Serial # 510000-599999 (103-8572)
• NAV20KC (2006) Serial # 600000-669999 (109-0461)
• NAV27KC (2006) Serial # 600000-669999 (109-0461)
• NAV27KC-T (2006) Serial # 600000-669999 (109-0461)

Phazer Series:

• PHZ19KA343 (2006) Serial # 600000-669999 (109-7087)
• PHZ19KA443 (2006) Serial # 600000-669999 (109-7087)
• PHZ19KA343 (2008) Serial # 720000-789999 (4500-270)
• PHZ19KA344CA (2008) Serial # 720000-789999 (4500-270)
• PHZ19KA343 (2009) Serial # 790000-849999 (4500-461)
• PHZ19KA343CA (2009) Serial # 790000-849999 (4500-461)
• PHZ19KA343 (2010) Serial # 850000-919999 (4500-489)
• PHZ19KA343CA (2010) Serial # 850000-919999 (4500-489)

Turf Ranger Series:

• TR-17K (None) Serial # None (1-850126)
• TR-18KO (None) Serial # None (1-850126)
• TURFRANGER (1997) Serial # 130000-159999 (850446)
• TURFRANGER (1999) Serial # 190000-219999 (850598)
• TURFRANGER (2000) Serial # 220000-251999 (850666)
• TURFRANGER (2000) Serial # 252000-259999 (103-0548)
• TURFRANGER (2001) Serial # 260000-319999 (103-0649)
• TURFRANGER (2002) Serial # 320000-369999 (103-1787)
• TURFRANGER (2003) Serial # 370000-439999 (103-3007)
• TURFRANGER (2005) Serial # 510000-599999 (103-9193)

Turf Tracer Series:

• TURFTRACER (1997) Serial # 130000-159999 (850438)
• TURFTRACER (1998) Serial # 160000-189999 (850509)
• TURFTRACER (1999) Serial # 190000-219999 (850621)
• TURFTRACER (2000) Serial # 220000-251999 (850672)
• TURFTRACER (2000) Serial # 252000-259999 (103-0542)
• TURFTRACER (2001) Serial # 260000-319999 (103-0674)
• TURFTRACER (2002) Serial # 320000-369999 (103-1559)
• TURFTRACER (2003) Serial # 370000-439999 (103-3003)
• TURFTRACER (2004) Serial # 440000-509999 (103-4868)
• TURFTRACER (2005) Serial # 510000-599999 (103-9191)
• TT-1800 (None) Serial # None (1-850084)

Turf Tracer Five Speed Series:

• TT-14K (None) Serial # None (1-850110)
• TT-17K (None) Serial # None (1-850110)
• TT-18KO (None) Serial # None (1-850110)

Turf Tracer HP Series:

• TURFTRACERHP (1997) Serial # 130000-159999 (850432)
• TURFTRACERHP (1998) Serial # 160000-189999 (850567)
• TURFTRACERHP (1999) Serial # 190000-219999 (850618)
• TURFTRACERHP (2000) Serial # 220000-259999 (850661)
• TURFTRACERHP (2001) Serial # 260000-319999 (103-1244)
• TURFTRACERHP (2002) Serial # 320000-369999 (103-1774)
• TURFTRACERHP (2003) Serial # 370000-439999 (103-2926)
• TURFTRACERHP (2004) Serial # 440000-509999 (103-4870)
• TURFTRACERHP (2005) Serial # 510000-539999 (103-6963)
• TT4819KAEC (2005) Serial # 540000-599999 (103-9188)
• TT3615KAC (2005) Serial # 540000-599999 (103-9189)
• TT4817KAC (2005) Serial # 540000-599999 (103-9189)
• TT4819KAC (2005) Serial # 540000-599999 (103-9189)
• TT5219KAC (2005) Serial # 540000-599999 (103-9189)
• TT5219KAEC (2005) Serial # 540000-599999 (103-9189)
• TURFTRACERHP (2005) Serial # 540000-599999 (103-9189)
• THP15KA363 (2006) Serial # 600000-669999 (109-0490)
• THP17KA483 (2006) Serial # 600000-669999 (109-0490)
• THP17KA523 (2006) Serial # 600000-669999 (109-0490)
• THP19KAE483 (2006) Serial # 600000-669999 (109-0490)
• THP19KAE523 (2006) Serial # 600000-669999 (109-0490)

Turf Tracer Hydro Series:

• TT20KCC (2005) Serial # 540000-599999 (103-9191)
• TT23KAC (2005) Serial # 540000-599999 (103-9191)
• TT23KCC (2005) Serial # 540000-599999 (103-9191)
• TT23KCE (2006) Serial # 600000-669999 (109-4816)

Turf Tracer Hydro ECS Series:

• TT20KCE (2006) Serial # 600000-669999 (109-4816)
• TT23KAE (2006) Serial # 600000-669999 (109-4816)

Turf Tracer Hydro Pistol Series:

• TT23KAEP (2008) Serial # 720000-789999 (4500-164)
• TT23KAEP (2009) Serial # 790000-849999 (4500-458)

Viking Series:

• VIKING (1997) Serial # 130000-159999 (850436)
• VIKING (1998) Serial # 160000-189999 (850465)
• VIKING (1999) Serial # 190000-219999 (850623)
• VIKING (2000) Serial # 220000-259999 (850655)
• VIKING (2004) Serial # 440000-509999 (103-4872)
• VIKING (2005) Serial # 510000-539999 (103-7197)

Viking 5-Speed Series:

• V36-12.5BV-5 (None) Serial # None (1-850103)
• V48-14BV-5 (None) Serial # None (1-850103)

Viking Hydro Series:

• VH15KA362 (2006) Serial # 600000-669999 (109-0015)
• VH15KA483 (2006) Serial # 600000-669999 (109-0015)

View All Exmark Models
