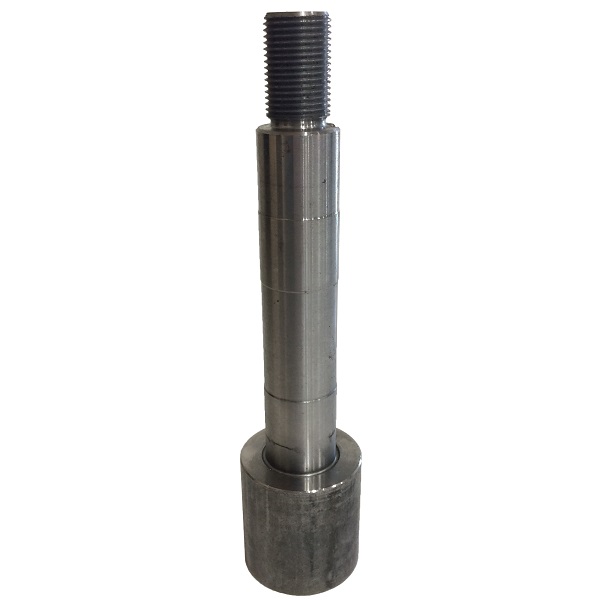

Exmark Short Spindle Part # 103-2785

Description

Exmark outer blade (short) spindle part # 103-2785 has the following dimensions:

• Length: 7.5″
• Outer Diameter: 1.75″
• Thread Size: 3/4″-16

This spindle is used on mowers:

FMD524, FMD604 Series:

• FMD524 (2005) Serial # 540000-599999 (103-9191)
• FMD604 (2005) Serial # 540000-599999 (103-9191)

Lazer Z AS (Advantage Series):

• LAZERZAS (2004) Serial # 440000-509999 (103-5504)
• LAZERZAS (2005) Serial # 510000-539999 (103-7215)

Lazer Z LC (Liquid Cooled) Series:

• LAZERZLQ (2003) Serial # 370000-439999 (103-3059)
• LAZERZLQ (2004) Serial # 440000-509999 (103-5506)
• LAZERZLQ (2005) Serial # 510000-539999 (103-7212)

Lazer Z XP Series:

• LAZERZXP (2003) Serial # 370000-439999 (103-2984)
• LAZERZXP (2004) Serial # 440000-509999 (103-4779)
• LAZERZXP (2005) Serial # 510000-539999 (103-7371)

Lazer Z XS Series:

• LAZERZXS (2004) Serial # 440000-509999 (103-6699)
• LAZERZXS (2005) Serial # 510000-539999 (103-8321)

Lazer Z, Lazer Z EFI Series:

• LAZERZ (2003) Serial # 370000-439999 (103-3059)
• LAZERZ (2004) Serial # 440000-509999 (103-4693)
• LAZERZ (2005) Serial # 510000-539999 (103-7209)

Turf Ranger Series:

• TURFRANGER (2003) Serial # 370000-439999 (103-3007)
• TURFRANGER (2005) Serial # 510000-599999 (103-9193)

Turf Tracer Series:

• TURFTRACER (2003) Serial # 370000-439999 (103-3003)
• TURFTRACER (2004) Serial # 440000-509999 (103-4868)
• TURFTRACER (2005) Serial # 510000-599999 (103-9191)

Turf Tracer Hydro Series:

• TT20KCC (2005) Serial # 540000-599999 (103-9191)
• TT23KAC (2005) Serial # 540000-599999 (103-9191)
• TT23KCC (2005) Serial # 540000-599999 (103-9191)
