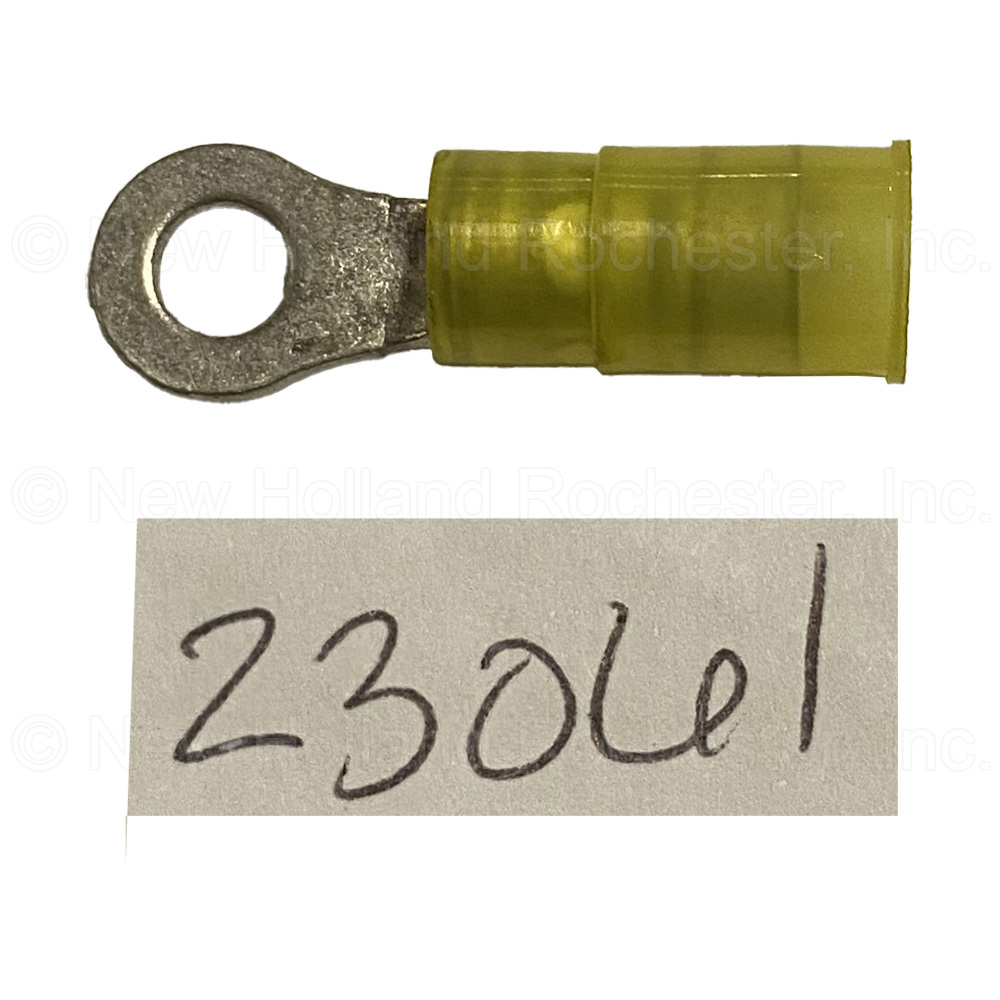

3.5 mm 12 to 10 AWG Circular Ring Terminal Part # 23061

Description

Product
Circular Ring Terminal: Partially Insulated, 12 to 10 AWG, Crimp Connection

Specifications
Terminal Type Circular
Insulation Type Partially Insulated
Connection Type Crimp
Compatible Wire Size (AWG) 12 to 10
Compatible Wire Size (sq mm) 4.00 to 6.00
Insulation Material Nylon
Color Yellow
Stud Size (mm) 5.30
Stud Size (#) 10
Contact Material Copper
Thickness (mm) 1.00
Thickness (Decimal Inch – 4 Decimals) 0.0390
Ring Width (Decimal Inch) 0.3740
Overall Length (mm) 29.80
Overall Length (Decimal Inch) 1.1730
UNSPSC Code 39121432
