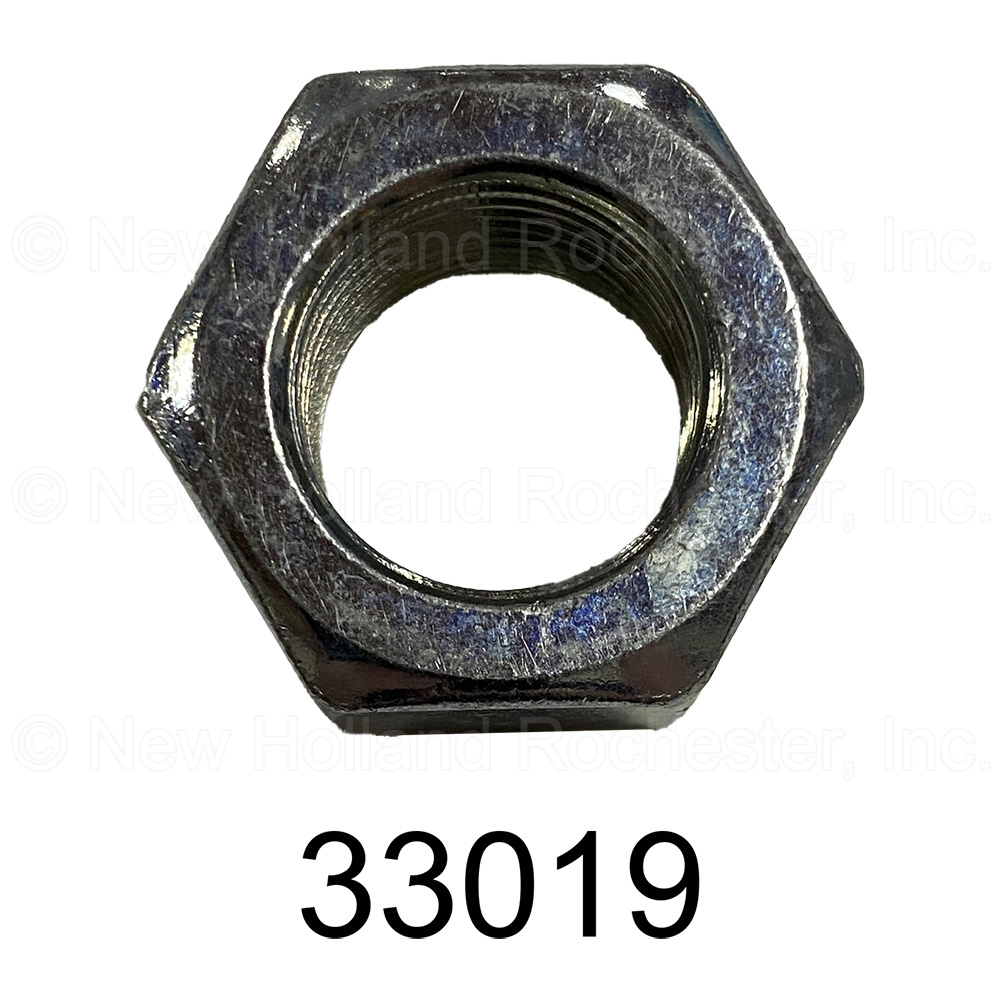

Grade 5 5/8 – 18 Hex Nut Part # 33019

Description

Product
Hex Nut: 5/8-18, SAE J995 Grade 5 Steel, Zinc Clear Finish

Specifications
Nut Type Hex Nut
Material Steel
Thread Direction Right Hand
Thread Size (Inch) 5/8-18
Material Grade SAE J995 Grade 5
Finish Coating Clear Zinc
Width Across Flats (Inch) 15/16
Width Across Flats (Decimal Inch) 0.9375
Thread Standard UNC; UNF
Hardness 32 HRC
Military Specification Does Not Meet Military Specifications
Height (Inch) 35/64
Height (Decimal Inch) 0.5469
Fastener Standard ASME B18.2.2; ANSI
Width Across Points (Decimal Inch) 1.0830
System Of Measurement Inch
UNSPSC Code 31161727
