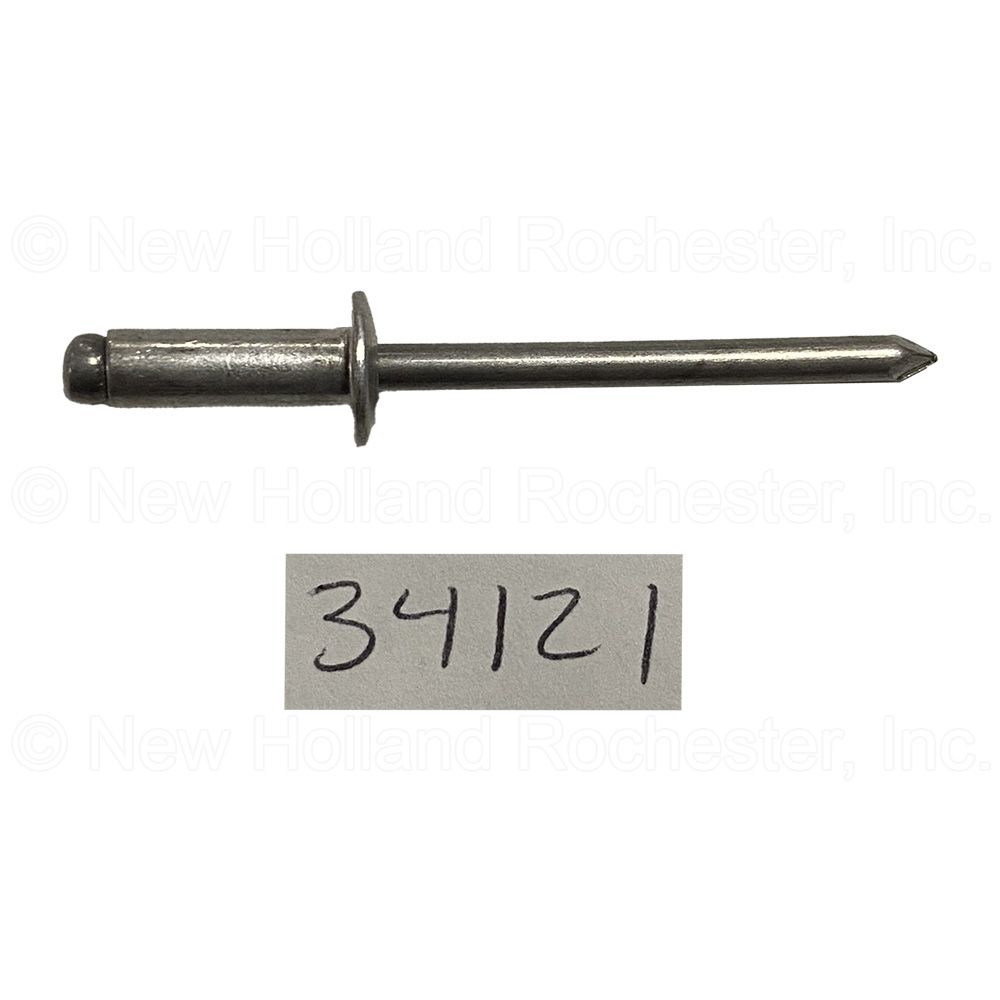

Size 66 Open End Blind Rivet Part # 34121

Description

Product
Open End Blind Rivet: Size 66, Dome Head, Aluminum Body, Aluminum Mandrel

Specifications
Rivet Type Open End
Head Diameter (Inch – 0 Decimals) 0.3750
Head Diameter (Inch) 3/8
Size Code 66
Minimum Grip (Decimal Inch) 0.2510
Mandrel Material Aluminum
Maximum Grip (Inch) 3/8
Maximum Grip (Decimal Inch) 0.3750
Minimum Hole Diameter (Decimal Inch) 0.1920
Maximum Hole Diameter (Decimal Inch) 0.1980
Body Material Aluminum
Finish Bright
Length Under Head (Decimal Inch) 0.5750
Body Diameter 0.1875
Body Diameter (Inch) 3/16
Head Type Dome
Head Height (Decimal Inch) 0.0600
Tensile Strength (Lb.) 320.000
Standards IFI 114 Grade 11
Rivet Material Grade 5052
Drill Size (Wire) #11
Shear Strength (Lb.) 260.00
Fastener Standard IFI 114 Grade 11
UNSPSC Code 31162201
