Product

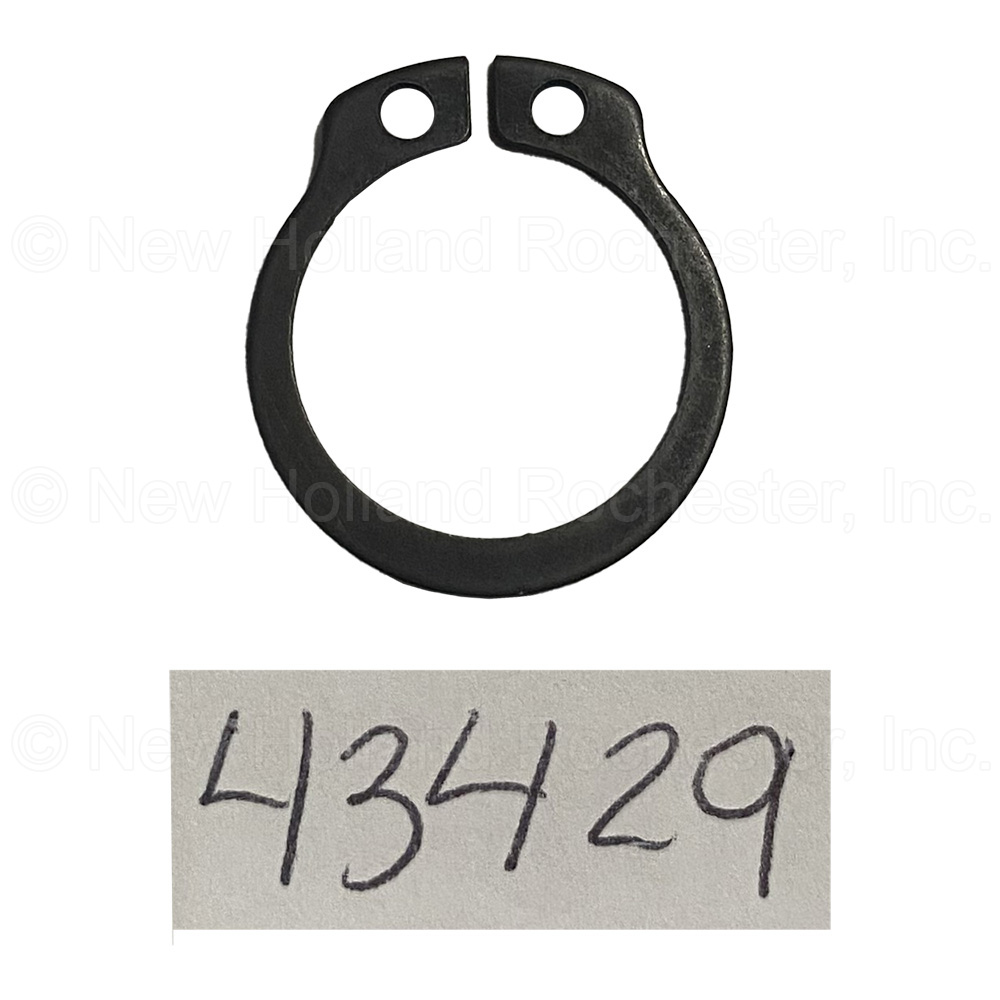

External Retaining Ring: 17 mm Groove Dia, 18 mm Shaft Dia, Spring Steel, Phosphate Finish
Specifications
| Shaft Diameter (mm) | 18.00 |
| Groove Diameter (mm) | 17.00 |
| Material | Spring Steel |
| Groove Diameter Tolerance (mm) | -0.1100 |
| Free Diameter (mm) | 16.50 |
| Free Outside Diameter (mm) | 16.50 |
| Military Specification | Does Not Meet Military Specifications |
| Finish | Phosphate |
| Standards | ISO 13485.2015; DIN 471 |
| Nominal Size (mm) | 18.00 |
| Inside Diameter (mm) | 16.50 |
| Groove Width (mm) | 1.30 |
| Groove Depth (mm) | 0.50 |
| Ring Thickness (mm) | 1.20 |
| Ring Thickness Tolerance (mm) | -0.0600 |
| Meets Specification | Yes |
| UNSPSC Code | 31163202 |
| System Of Measurement | Metric |
| Finish Coating | Phosphate |
