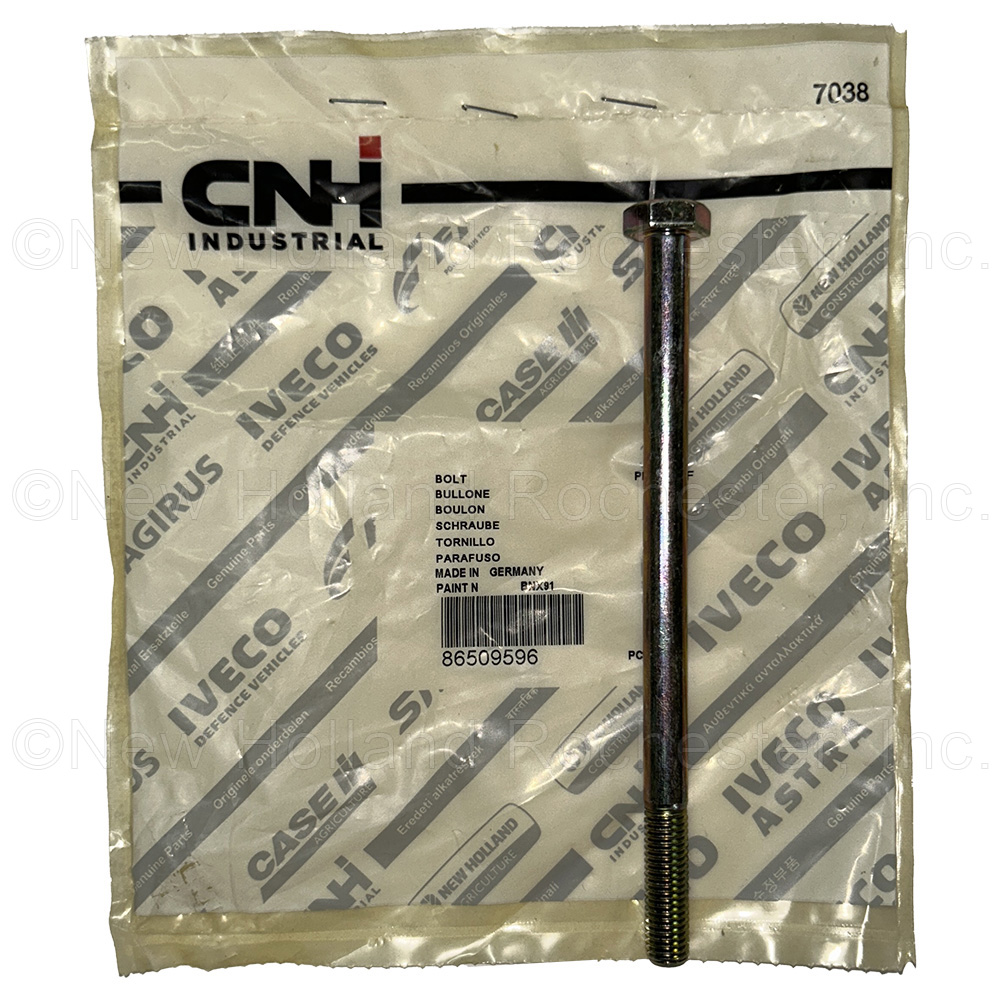

New Holland Bolt Part # 86509596

New Holland Bolt Part # 86509596

$15.25

BOLT

Only 1 left in stock (can be backordered)

Add to Wishlist

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov

SKU: 86509596 Category:

Description

Part #: 86509596

Replaces: U133855, P133855, 97-002846, 87681243, 87626268, 87623657, 84322106, 814-10160, 2020/10160

Models Used On:

CIH AG

TRACTORS (AG)
  • TRACTOR - ACTIVEDRIVE - STAGE V (NA) - MY21:

    VESTRUM 130 (1/21-12/99); VESTRUM 110 (1/21-12/99); VESTRUM 100 (1/21-12/99); VESTRUM 120 (1/21-12/99)

  • TRACTOR - CVX DRIVE - STAGE V (NA):

    VESTRUM 100 (6/19-12/99); VESTRUM 130 (6/19-12/99); VESTRUM 110 (6/19-4/21); VESTRUM 120 (6/19-4/21); VERSUM 130 (6/19-6/19); VERSUM 120 (6/19-6/19); VERSUM 110 (6/19-6/19); VERSUM 100 (6/19-6/19)

  • TRACTOR - CVX DRIVE - STAGE V (NA) - MY21:

    VESTRUM 110 (1/21-12/99); VESTRUM 100 (1/21-12/99); VESTRUM 130 (1/21-12/99); VESTRUM 120 (1/21-12/99)

  • TRACTOR - ACTIVEDRIVE - STAGE V (NA):

    VESTRUM 110 (4/20-12/99); VESTRUM 100 (4/20-12/99); VESTRUM 130 (4/20-12/99); VESTRUM 120 (4/20-12/99)

  • TRACTOR (NA):

    MAGNUM 335 (11/07-12/10); MAGNUM 305 (9/06-12/10); MAGNUM 275 (9/06-12/10); MAGNUM 245 (9/06-12/10); MAGNUM 215 (9/06-12/10)

  • CASE IH MAGNUM TRACTOR NA:

    MX245 (1/06-9/06); MX215 (1/06-9/06); MX305 (1/06-9/06); MX275 (1/06-9/06)

HARV EQ (HEADERS)

  • GRAIN HEADER:

    3050-35FT (9/12-12/99); 3050-30FT (9/12-12/99); 3050-25FT H (9/12-9/12)

  • FLEXIBLE GRAIN HEAD:

    2020 (1/03-12/08)

  • RIGID GRAIN HEAD:

    2010 (2/03-12/13)

MATERIAL HANDLING (LOADERS)

  • LOADER:

    L350A (11/13-1/18)

CROP PROD (AIR CARTS)

  • PRECISION AIR CART:

    3555 (11/15-4/17); 2355 (11/15-12/17); 3445 (11/15-3/17); 4585 (11/15-4/17); 4465 (11/15-3/17)

TRACTORS (COMPACT)

  • CASE IH 4 CYL COMPACT TRACTOR WITH CAB:

    DX45 (7/06-12/07)

HARV EQ (AXIAL ROTARY COMBINES)

  • AXIAL-FLOW COMBINE:

    AFX8010 (3/03-9/06)

NH AG

TRACTORS (AG)
  • DYNAMIC COMMAND TRACTOR - STAGE V (NAFTA):

    T5.130 (4/20-12/99); T5.110 (4/20-12/99); T5.120 (4/20-12/99); T5.140 (4/20-12/99)

  • AUTOCOMMAND TRACTOR - STAGE V (NA):

    T5.130 (6/19-12/99); T5.140 (6/19-12/99); T5.110 (6/19-4/21); T5.120 (6/19-4/21)

  • DYNAMIC COMMAND TRACTOR - STAGE V (NAFTA) - MY21:

    T5.120 (1/21-12/99); T5.110 (1/21-12/99); T5.140 (1/21-12/99); T5.130 (1/21-12/99)

  • AUTOCOMMAND TRACTOR - STAGE V (NA) - MY21:

    T5.120 (1/21-12/99); T5.110 (1/21-12/99); T5.140 (1/21-12/99); T5.130 (1/21-12/99)

HARV EQ (HEADERS)

  • VARIFEED GRAIN HEADER:

    3050 (12/08-12/99)

  • GRAIN HEADER:

    760CG-35FT (9/12-12/99); 760CG-30FT (9/12-12/99); 760CG-25FT H (9/12-9/12)

  • RIGID GRAIN HEAD:

    72C (8/01-12/14); 71C (2/01-12/04)

  • VARIFEED GRAINHEADERS (25FT-30FT-35FT):

    760CG (1/08-12/13)

  • FLEXIBLE GRAIN HEAD:

    74C (8/01-11/10); 73C (2/01-12/06)

HARV EQ (CONV COMBINES)

  • COMBINE - BASE UNIT:

    CX880 (2/01-12/06); CX840 (2/01-12/06); CX860 (2/01-12/06)

HARV EQ (ROTARY COMBINES)

  • COMBINE - BASE UNIT:

    CR920 (10/01-12/06); CR970 (10/01-9/06); CR960 (10/01-9/06); CR980 (10/01-9/06); CR940 (10/01-9/06)

BALERS (SQUARE BALERS)

  • NH BIG BALER:

    590 (2/98-12/99)

  • NH BIG BALER W/CUTTER:

    590C (2/98-12/99)

OTHER BRANDS

FLEXICOIL (AIR CARTS)
  • FC 555 BU AIR CART:

    5560 (11/15-4/21)

  • FC 460 BU AIR CART:

    4660 (11/15-11/15)

  • FC 350 BU AIR CART:

    3560 (11/15-1/17)

  • FC 580 BU AIR CART:

    5860 (11/15-4/16)

  • FC 435 BU AIR CART:

    4460 (11/15-10/16)

FLEXICOIL (PLANTING & SEEDING)

  • FLEXICOIL:

    LEGACY FLEXICOIL (1/96-1/97)

FPT

ENGINES (GENSET)

  • FPT POWER UNIT - TIER 4B:

    FPT 250B IPU (4/16-4/17); FPT 280B IPU (3/16-3/17)

CASE CE

LIGHT EQ (SKID STEER)
  • SKID STEER - SERIES 3, 440 NA ASN N8M474469, 440 EU ASN N8M407542:

    440 (1/08-12/11)

  • SKID STEER - TIER 3 ASN N7M452623:

    465 (1/08-3/11)

  • SKID STEER, TIER 3, P.I.N. N7M464019 & AFTER:

    450 (1/08-3/11)

LIGHT EQ (COMPACT TRACK LOADERS)

  • COMPACT TRACK LOADER - SERIES 3, ASN N7M483467:

    440CT (1/08-3/11)

  • COMPACT TRACK LOADER - SERIES 3 ASN N7M464019:

    450CT (1/08-3/11)

LIGHT EQ (LOADER BACKHOES)

  • CASE SUPER-K CONSTRUCTION KING LOADER BACKHOE:

    580SK (3/96-12/96)

  • LOADER BACKHOE (NORTH AMERICA) (ASN JJG0020000):

    580K (1/87-12/94)

HEAVY EQ (CRAWLER EXC)

  • POCLAIN CRAWLER EXCAVATOR - ELECTRICAL MOTOR (ZAIRE):

    220B (1/85-12/92)

  • CASE CRAWLER EXCAVATOR (NORTH AMERICA):

    220B (7/84-12/92); 125B (1/88-12/89)

  • POCLAIN CRAWLER EXCAVATOR:

    220 (1/88-12/92); 75C (5/75-12/87); 90CL (5/83-12/83); 160CL (1/76-12/82); 160CKS (8/75-12/82); 160CK (3/76-12/82); 115CL (11/74-12/82); LC80 (1/66-12/77); LC80M (1/69-12/77)

  • POCLAIN CRAWLER EXCAVATOR - CK (12440-13030) - CL (8441-8714):

    220 (1/88-12/92)

  • CASE CRAWLER EXCAVATOR (S/N 74163-74418) (S/N 15201-):

    888 (8/86-12/91)

  • POCLAIN CRAWLER EXCAVATOR (S/N 8321 & AFTER):

    160CL (5/76-12/82)

  • POCLAIN CRAWLER EXCAVATOR (S/N 12321 & AFTER):

    160CK (8/76-12/82)

  • POCLAIN CRAWLER EXCAVATOR (NORTH AMERICA):

    SC150L (1/73-12/76); SC150K (1/72-12/76); SC150 (1/72-12/76); TC45 (1/62-12/71)

HEAVY EQ (WHEELED EXC)

  • POCLAIN WHEELED EXCAVATOR:

    75P (5/75-12/83); TY45 (1/64-12/81)

NH CE

LIGHT EQ (SKID STEER)
  • SKID STEER LOADER - 1 SPEED (NA), P.I.N. N8M465249 & AFTER:

    L185 (1/08-12/11)

  • SKID STEER LOADER, P.I.N. N7M459487 & AFTER:

    L190 (1/08-12/11)

LIGHT EQ (COMPACT TRACK LOADERS)

  • COMPACT TRACK LOADER, P.I.N. N7M457282 & AFTER:

    C190 (1/08-3/11)


View Parts Catalog
