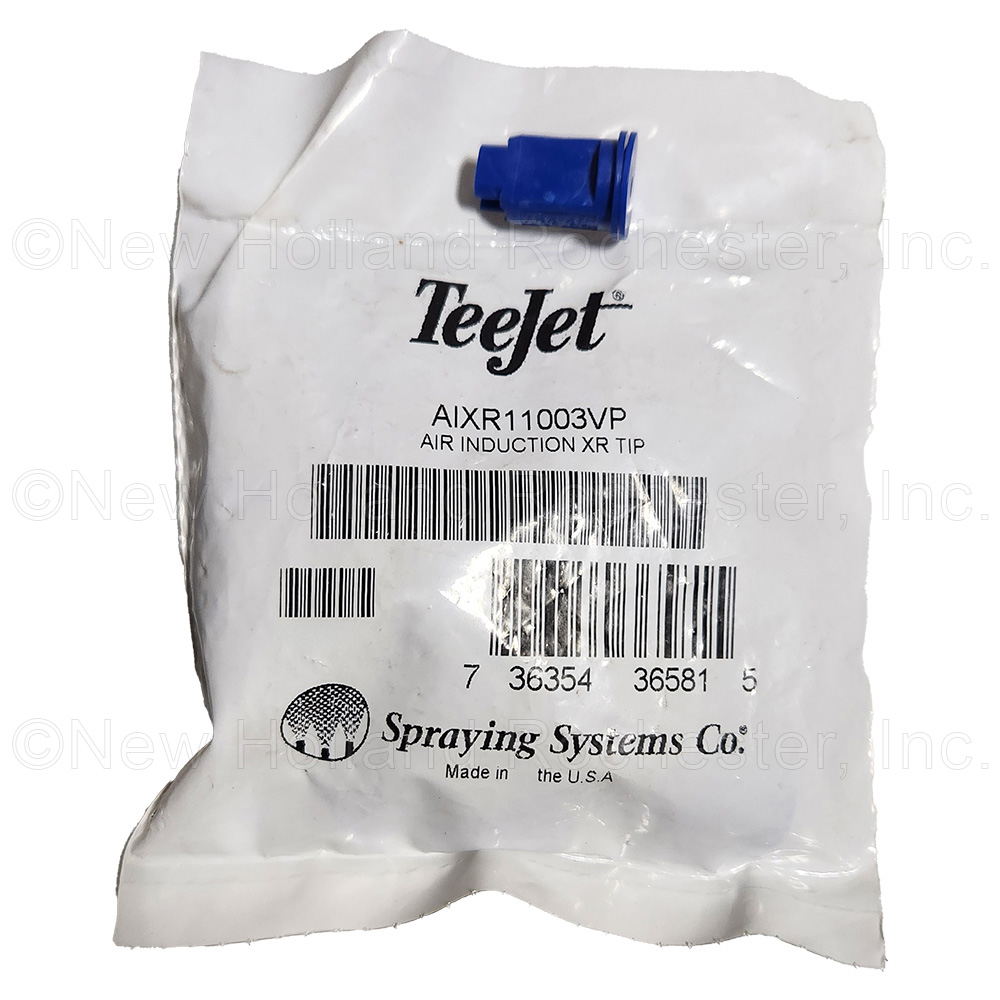

TeeJet Air Induction XR 110-Deg Flat Blue Spray Tip Part # AIXR11003-VP

Description

The best balance between spray coverage and drift control.

The Air Induction Extended Range (AIXR TeeJet®) flat spray tip offers the benefit of obtaining excellent drift resistance without compromising spray coverage. The AIXR produces a wide range of droplet sizes suitable for all types of applications making it one of the more versatile spray tips on the market.

Benefits:

• The most versatile air induction nozzle on the market.
• Low drift potential (Up to 90% drift reduction*)
• Wide operating pressure range of 15 – 90 PSI
• Optimum operating pressure: 45 – 60 PSI (3 – 4 Bar)
• Compact design with removable pre-orifice for easy cleaning.
• The AIXR is built with an UHWMPE** material offering high chemical resistance.

Features:

• Tapered edge flat spray angle pattern with air induction technology offers better drift management.
• Produces large air-filled droplets through a Venturi air aspirator.
• Unique UHMWPE polymer material used on the AIXR-VP adds improved wear life and better acid resistance.
• The AIXR-VK polypropylene body provides excellent acid resistance, and the ceramic pre- and exit orifice offers improved wear life.
• Compact size to prevent tip damage.
• Removable pre-orifice.
• Available in nine VisiFlo® Polymer (VP) and seven VisiFlo ceramic (VK) capacities.
• Automatic spray alignment with Quick TeeJet® cap and gasket 114441A-*-CELR (015 to 06) or 114443A-*-CELR (08 and 10).
