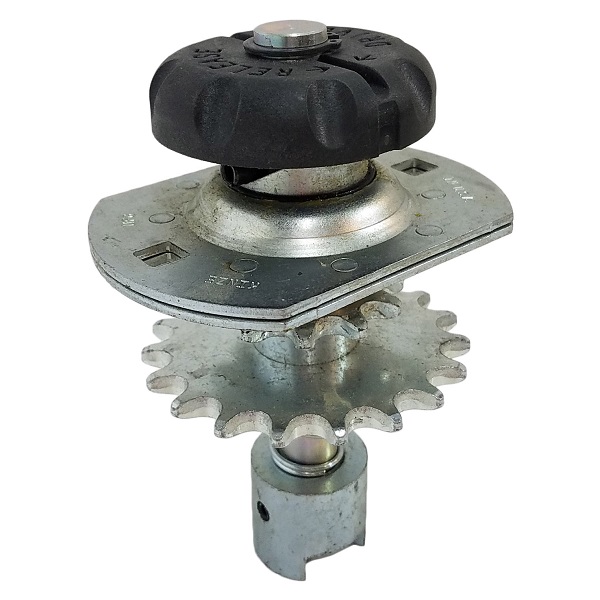

Kinze Meter Drive Assembly Part # GA10151

Description

Kinze meter drive assembly, 11/19 tooth, is made up of the following components:

• G10602 – 1/4″ x 1 1/2″ spring pin
• G10567 – 5/8″ external retaining ring
• GD11239 – Knob
• G10137 – Double sprocket and bearing, drive clutch, 11/19 tooth
• GD11413 – Spring
• GD15747 – Shaft
• GB0278 – Coupler
• G10546 – 3/16″ x 1 1/4″ spring pin

This assembly fits the following models:

3000 Series Planters:

• Kinze 3000 (Mechanical Metering) Pull Type Planter Serial 643579 and on M0188-02
• Kinze 3110 (EdgeVac Metering) 3 Point Mounted Planter Serial 603507 and on M0183
• Kinze 3110 (Mechanical Metering) 3 Point Mounted Planter Serial 603562-2012 Production M0189
• Kinze 3110 3 Point Mounted Planter 2013-14 Production M0244-02
• Kinze 3110 3 Point Mounted Planter 2015 Production and on M0255-02
• Kinze 3120 (Mechanical Metering) 3 Point Mounted Planter Serial 603562 and on M0190
• Kinze 3140 (EdgeVac Metering) Stack-Fold Planter Serial 603536 and on M0184
• Kinze 3140 (Mechanical Metering) Stack-Fold Planter Serial 603562-2012 Production M0191
• Kinze 3140 Stack-Fold Planter 2013-14 Production M0245-02
• Kinze 3140 Stack-Fold Planter 2015 Production and on M0256-02
• Kinze 3200 (Mechanical Metering) Flex Econo-Fold Planter Serial 680370 and on M0192
• Kinze 3200 Wing Fold Planter (EdgeVac Metering Serial 680671-2014 Production) (Mechanical Serial 680370-2014 Production) M0241-02
• Kinze 3200 Wing Fold Planter 2015 Production and on M0257-02
• Kinze 3500 Twin-Line Planter (EdgeVac Metering Serial 902498-2014 Production) (Mechanical Serial 902911-2014 Production) M0240-02
• Kinze 3600 (Mechancial Metering) Twin-Line Planter Serial 621834 and on M0223
• Kinze 3600 (Mechanical Metering) Twin-Line Planter Serial 619549-621833 M0195
• Kinze 3600 Twin-Line Planter (12R30in & 16R30in Y & T Hitch Conventional & ASD, 2011-14 Production) (16R7.5in Twin Row Y Hitch, 2013-14 Production) M0236-02
• Kinze 3600 Twin-Line Planter (12R30in & 16R30in Y & T Hitch Conventional & Bulk Fill) (16R7.5in Twin Row Y Hitch) 2015 Production and on M0259-02
• Kinze 3600TR (Mechanical Metering) Twin-Line Planter Serial 620614 and on M0210
• Kinze 3600V (Mechanical Metering) Twin-Line Planter Serial 621654 and on PM0212
• Kinze 3650, 3650 SDS (Mechanical Metering) Twin-Line Planter Serial 655617 and on M0198
• Kinze 3660 Pivot-Fold Planter 2015 Production and on M0260-02
• Kinze 3660 Twin-Line Planter 2009-14 Production M0217-02
• Kinze 3700 Front Folding Planter 2010-14 Production M0233-02
• Kinze 3700 Front Folding Planter 2015 Production and on M0261-02
• Kinze 3700, 3700 SDS (Mechanical Metering) Front Folding Planter Serial 750798 and on M0196
• Kinze 3800 Forward Folding Planter 2010 Production and on M0235-02
• Kinze 3800 SDS (Mechanical Metering) Forward Folding Planter Serial 755331 and on M0229
• Kinze 3800, 3800 SDS (EdgeVac Metering with Hydraulic Drive) Serial 755299 and on M0220
• Kinze 3800, 3800 SDS (EdgeVac Metering) Forward Folding Planter Serial 755045-755214 and on M0207
• Kinze 3800, 3800 SDS (EdgeVac Metering) Forward Folding Planter Serial 755215-755330 M0215
• Kinze 3800, 3800 SDS (EdgeVac Metering) Forward Folding Planter Serial 755331 and on M0230
• Kinze 3800, 3800 SDS (Mechanical Metering with Hydraulic Drive) Serial 755299 and on M0219
• Kinze 3800, 3800 SDS (Mechanical Metering) Forward Folding Planter Serial 755102 and on M0197

4000 Series Planters:

• Kinze 4900 Front Folding Planter 2013 Production and on M0247-02
