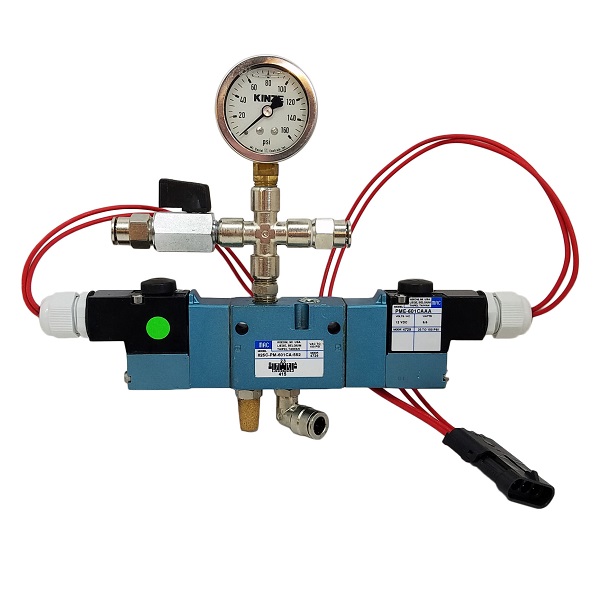

Kinze Dual Solenoid Assembly Part # GA11995

Description

Kinze dual solenoid assembly consists of the following components:

• G11247 – Slotted Pan Head Machine Screw, M4-07 x 8
• GA11992 – Shutoff valve, 1/4″ NPT
• GD17156 – Plug, 1/4″ NPT
• GA11997 – Breather, 1/4″ NPT
• GD17154 – Connector, 1/4″ Male
• GA11993 – Block
• GD17141 – Connector, 1/4″ Male
• GA11994 – Solenoid
• GD18078 – Female Cross, 1/4″ NPT
• GA12104 – Pressure Gauge, 1/4″ NPT
• GD17143 – Swivel Elbow, 1/4″ NPT x 3/8″

This assembly is used on the following models:

3000 Series Planters:

• Kinze 3500 Pivot Fold Planter 2015 Production and on M0258-02
• Kinze 3500 Twin-Line Planter (EdgeVac Metering Serial 902498-2014 Production) (Mechanical Serial 902911-2014 Production) M0240-02
• Kinze 3600 (EdgeVac Metering) Twin-Line Planter Serial 619549-621833 M0200
• Kinze 3600 (EdgeVac Metering) Twin-Line Planter Serial 621834 and on M0224
• Kinze 3600 (Mechancial Metering) Twin-Line Planter Serial 621834 and on M0223
• Kinze 3600 (Mechanical Metering) Twin-Line Planter Serial 619549-621833 M0195
• Kinze 3600 Twin-Line Planter (12R30in & 16R30in Y & T Hitch Conventional & ASD, 2011-14 Production) (16R7.5in Twin Row Y Hitch, 2013-14 Production) M0236-02
• Kinze 3600 Twin-Line Planter (12R30in & 16R30in Y & T Hitch Conventional & Bulk Fill) (16R7.5in Twin Row Y Hitch) 2015 Production and on M0259-02
• Kinze 3600TR (EdgeVac Metering) Twin-Line Planter Serial 620614 and on M0211
• Kinze 3600TR (Mechanical Metering) Twin-Line Planter Serial 620614 and on M0210
• Kinze 3600V (EdgeVac Metering) Twin-Line Planter Serial 621654 and on PM0213
• Kinze 3600V (Mechanical Metering) Twin-Line Planter Serial 621654 and on PM0212
• Kinze 3660 Pivot-Fold Planter 2015 Production and on M0260-02
• Kinze 3660 Twin-Line Planter 2009-14 Production M0217-02
• Kinze 3700 Front Folding Planter 2010-14 Production M0233-02
• Kinze 3700 Front Folding Planter 2015 Production and on M0261-02
• Kinze 3700, 3700 SDS (EdgeVac Metering) Front Folding Planter Serial 750816 and on M0202
• Kinze 3700, 3700 SDS (Mechanical Metering) Front Folding Planter Serial 750798 and on M0196
• Kinze 3800 Forward Folding Planter 2010 Production and on M0235-02
• Kinze 3800 SDS (Mechanical Metering) Forward Folding Planter Serial 755331 and on M0229
• Kinze 3800, 3800 SDS (EdgeVac Metering with Hydraulic Drive) Serial 755299 and on M0220
• Kinze 3800, 3800 SDS (EdgeVac Metering) Forward Folding Planter Serial 755215-755330 M0215
• Kinze 3800, 3800 SDS (EdgeVac Metering) Forward Folding Planter Serial 755331 and on M0230
• Kinze 3800, 3800 SDS (Mechanical Metering with Hydraulic Drive) Serial 755299 and on M0219
• Kinze 3800, 3800 SDS (Mechanical Metering) Forward Folding Planter Serial 755102 and on M0197
