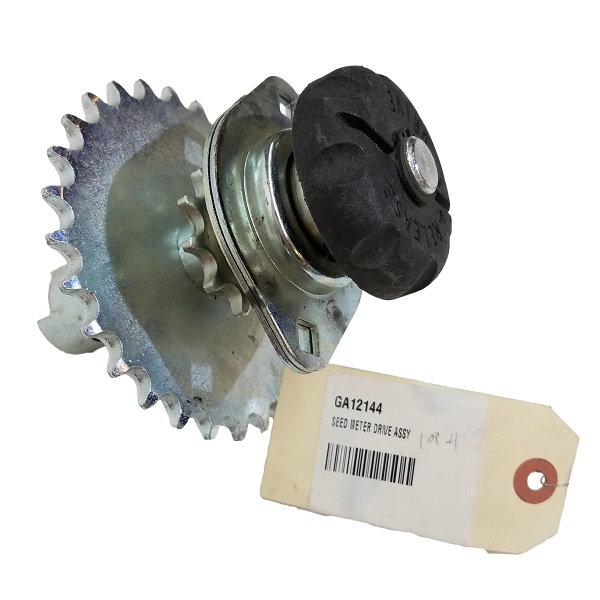

Kinze Meter Drive Assembly Part # GA12144

Description

Kinze meter drive assembly, 11/28 tooth, part # GA12144 contains the following components:

• G10602 – 1/4″ x 1 1/2″ spring pin
• G10567 – 5/8″ external retaining ring
• GD11239 – Knob
• GA12143 – Double sprocket and bearing, drive clutch, 11/28 tooth
• GD11413 – Spring
• GD15747 – Shaft
• GB0278 – Coupler
• G10546 – 3/16″ x 1 1/4″ spring pin

This assembly is used on the following models:

3000 Series Planters:

• Kinze 3000 (EdgeVac Metering) Pull Type Planter Serial 643873 and on M0208
• Kinze 3110 3 Point Mounted Planter 2013-14 Production M0244-02
• Kinze 3140 Stack-Fold Planter 2013-14 Production M0245-02
• Kinze 3200 Wing Fold Planter (EdgeVac Metering Serial 680671-2014 Production) (Mechanical Serial 680370-2014 Production) M0241-02
• Kinze 3400 (EdgeVac Metering) Twin-Line Planter Serial 625094 and on M0209
• Kinze 3500 Twin-Line Planter (EdgeVac Metering Serial 902498-2014 Production) (Mechanical Serial 902911-2014 Production) M0240-02
• Kinze 3600 (EdgeVac Metering) Twin-Line Planter Serial 619549-621833 M0200
• Kinze 3600 (EdgeVac Metering) Twin-Line Planter Serial 621834 and on M0224
• Kinze 3600 Twin-Line Planter (12R30in & 16R30in Y & T Hitch Conventional & ASD, 2011-14 Production) (16R7.5in Twin Row Y Hitch, 2013-14 Production) M0236-02
• Kinze 3600TR (EdgeVac Metering) Twin-Line Planter Serial 620614 and on M0211
• Kinze 3600V (EdgeVac Metering) Twin-Line Planter Serial 621654 and on PM0213
• Kinze 3650, 3650 SDS (EdgeVac Metering) Twin-Line Planter Serial 655602 and on M0186
• Kinze 3660 Twin-Line Planter 2009-14 Production M0217-02
• Kinze 3700 Front Folding Planter 2010-14 Production M0233-02
• Kinze 3700, 3700 SDS (EdgeVac Metering) Front Folding Planter Serial 750816 and on M0202
