Description

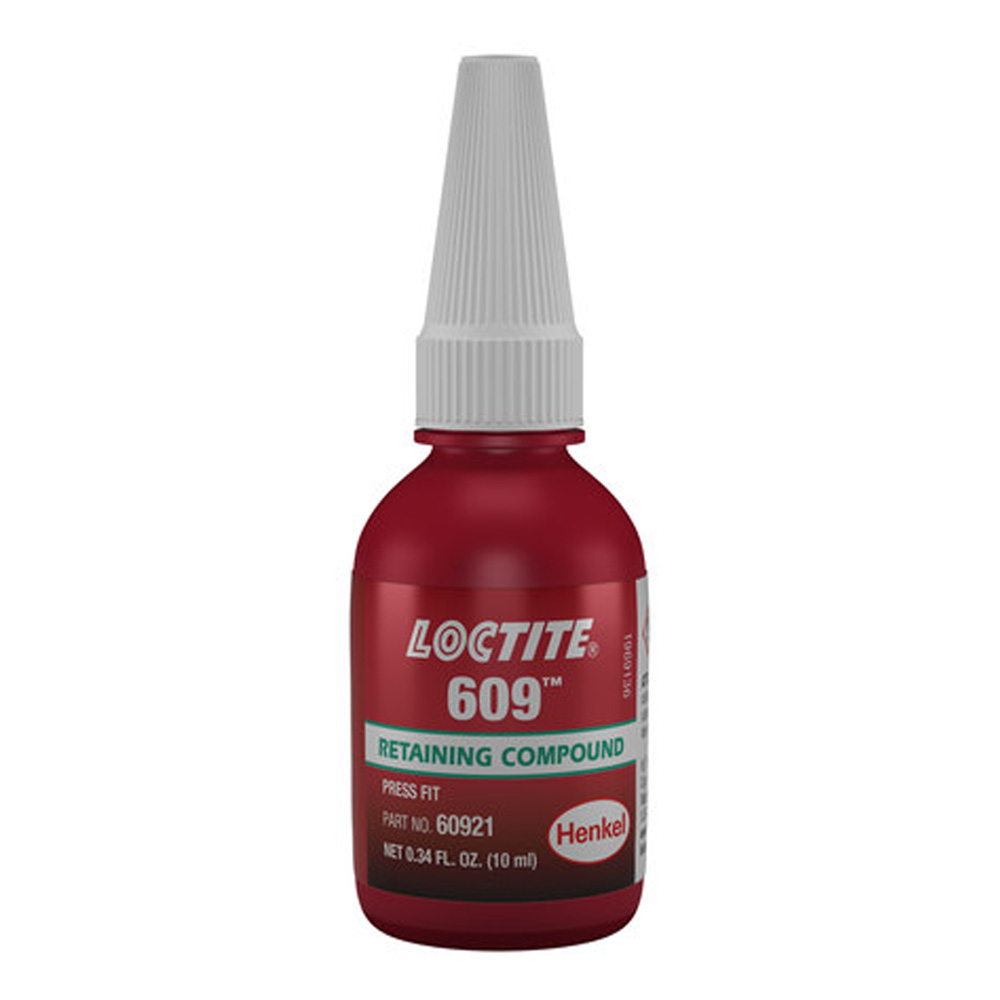

LOCTITE Retaining Compound 609 is a press fit/ general purpose, low viscosity, rapid-curing anaerobic adhesive that augments the strength of press fit assemblies up to 0.005″ (.127 mm) in diameter. Adds up to 3,000 PSI holding power. The green, high strength, anaerobic-curing retaining compound cures in the absence of air between close fitting metal surfaces, providing a high strength and corrosion-free bond.
Dimensions
Gap Fill Size – Retaining Compounds |
0.006 in |
Container Size |
0.34 fl oz |
Container Size – Adhesives |
0.34 oz |
Maximum Gap Fill Size |
0.006 in |
Size |
10ml |
Gap Fill Size |
0.006 in |
Filling Gap Size |
Up to 0.006″ |
Details
Item |
Retaining Compound |
Shear Strength (PSI) |
2,300 psi |
Optimal Usage Temperature |
-65 Degrees to 300 Degrees F |
Color |
Green |
Compatible Materials |
Steel |
Container Type – Adhesives |
Bottle |
Application |
Press Fit, Press Fit or Slip Fit/Housing Mount, Shaft Mount |
Operating Temperature Range |
-65 Degrees F to 300 Degrees F |
Shear Strength |
2,290 psi |
Standards |
29 CFR 1910.1200 |
Primer |
T |
Characteristics |
Green |
Compound Type |
Fast Cure, General Purpose Low Viscosity |
Type |
General Purpose |
Physical Form |
Liquid |
Max. Temp. (F) |
300 Degrees F |
Series |
609 |
Full Cure |
24 hr |
Working Time Range |
6 to 10 min |
Container Type |
Bottle |
Compatible Primer Series |
Excel 612 |
Color Family |
Green |
Storage Requirements |
8 Degrees to 21 Degrees C |
Minimum Viscosity |
120 cps |
Retaining Compounds Properties |
For Close Fitting Parts |
Specific Gravity |
1.1 |
Brand & Series |
LOCTITE 609 |
Cure Type |
Anaerobic |
Minimum Operating Temperature |
-65 Degrees F |
Maximum Viscosity |
120 cps |
For Material Type |
Steel |
Working Time |
10 min |
Retaining Compound Properties |
For Close-Fitting Parts |
Chemical Base |
Methacrylate Ester |
Maximum Operating Temperature |
300 Degrees F |
Primer Required |
Yes |
Clean Up Method |
Solvent, Wire Brush |
Product Form |
Liquid |
VOC Content |
2.46 g/L |
Full Cure Time |
1 day |
Flash Point |
200 Degrees F |
Retaining Compound Strength |
High |
Non-Toxic |
No |
