Kuhn Krause Disc Harrow Shank Part # Q4006960

Description

Kuhn Krause disc harrow shank part # Q4006960 fits the following Kuhn Krause models:  (Please review the shank’s dimensions given at the end of the list of models for application other than Kuhn Krause models):

Dominator models with serial number range 3411> :

• 4850-12
• 4850-15
• 4850-18
• 4850-21

Dominator models with serial number range 3471 > 9999 :

• 4850-12
• 4850-15
• 4850-18
• 4850-21

Disc Harrow models (unspecified serial numbers):

• 4995-28N
• 4995-28NR
• 4995-28W
• 4995-28WR
• 4995-31N
• 4995-31NR
• 4995-31W
• 4995-31WR
• 4995-34N
• 4995-34NR
• 4995-34W
• 4995-35WR
• 4995-36N
• 4995-36NR
• 4995-36W
• 4995-36WR

Tandem Disc Harrow models with serial number range 1521 > 9999:

• 7400-18NR
• 7400-18WR
• 7400-21NR
• 7400-21WR
• 7400-24NR
• 7400-24WR
• 7400-27NR
• 7400-27WR

Excelerator models with serial number range 1561 > 1710:

• 8000-20
• 8000-25
• 8000-30
• 8000-40

Excelerator models with serial number range 3131> :

• 8000-14
• 8000-20
• 8000-25
• 8000-30
• 8000-40
• 8000-50

Tandem Disc Harrow models with serial number range 2011> :

• 8200-19N
• 8200-19W
• 8200-22N
• 8200-22W
• 8200-25N
• 8200-25W

Tandem Disc Harrow models with serial number range 2041> :

• 8200-28N
• 8200-28W
• 8200-31N
• 8200-31W
• 8200-34N
• 8200-34W
• 8200-36N
• 8200-36NQF
• 8200-36W
• 8200-36WQF
• 8200-38NQF
• 8200-38WQF

Tandem Disc Harrow models with serial number range 1191> :

• 8300-19N
• 8300-19W
• 8300-22N
• 8300-22W
• 8300-25N
• 8300-25W

Tandem Disc Harrow models with serial number range 1201> :

• 8300-28N
• 8300-28W
• 8300-31N
• 8300-31W
• 8300-34N
• 8300-34W
• 8300-37NQF
• 8300-37WQF

Dimensions:

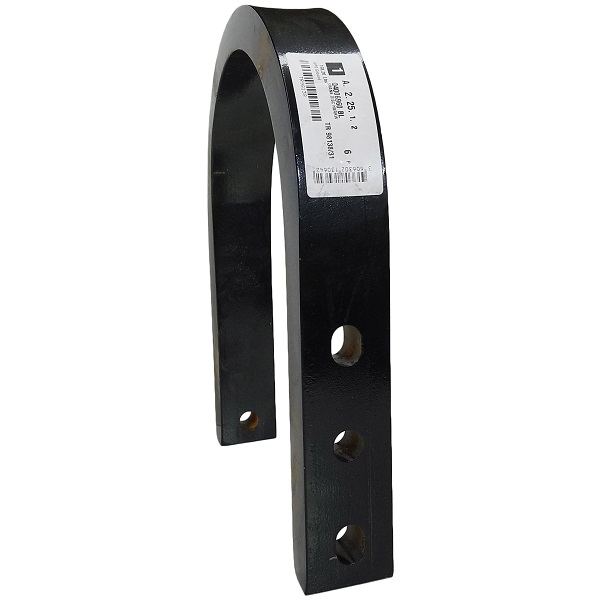

Using the product image (upright position) as a guide:

• Outside (left to right) is 12 5/8″
• Inside (left to right)  10 1/4″
• Outside (bottom to top of shank) is 16 1/16″
• Inside (bottom to top of shank) is 14 7/8″

The following refers to the single opening (left side) in the product image:

• bottom of shank to center of opening is 1″
• bottom of shank to bottom of opening is 11/16″
• bottom of shank to top of opening is 1 1/2″
• circumference of opening is 3/4″

The following refers to the three openings (right side, bottom to top) in the product image:

• bottom of shank to center of first opening is 1 1/4″
• bottom of shank to bottom of first opening is 3/4″
• bottom of shank to top of first opening is 1 3/4″
• bottom of shank to center of second opening is 3 3/4″
• bottom of shank to bottom of second opening is 3 7/16″
• bottom of shank to top of second opening is 4 1/4″
• bottom of shank to center of third opening is 6 1/2″
• bottom of shank to bottom of third opening is 5 15/16″
• bottom of shank to top of third opening is 7″
